Capturing summary weight at receiving with an RF device

The summary weight capture RF screen is used at receiving if the Inbound Summary RF Weight Capture flag is turned on for the item.

On the RF screen, the system displays the expected weight for a transaction using the weight information configured in fields Standard Gross Weight , Standard Net Weight , and Standard Tare Weight. These weights are multiplied by the quantity received to calculate the expected weight. If the UOM for Summary Weight Capture for the item is something other than the master unit (each), the expected weights are calculated using that unit of measure.

To capture summary weight with an RF device:

  1. Follow the steps in the Infor WMS Receiving User Guide to record the receipt of inbound product.
  2. When the receipt is complete, press Enter.
  3. The weights that are listed on the screen are controlled by the item configuration. The item configuration for Catch Gross Weight , Catch Net Weight , and Catch Tare Weight controls which fields are displayed.
    Gross
    This is the gross weight for the current transaction.
    Net
    This is the net weight for the current transaction.
    Tare
    This is the tare weight for the current transaction.
  4. You can modify these expected weights. To accept the expected weights or your modified weights, pressEnter
  5. If the weight of each unit needs to be scanned to calculate the total weight, use the F5 key to access a different screen.

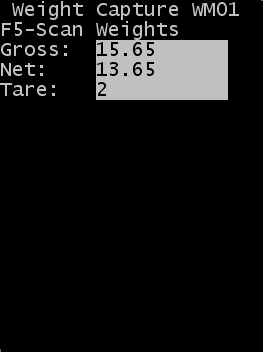

  6. When all weights expected are captured, the WM01 screen is displayed to confirm the total weight.

    Before completing the transaction, the system validates that the weights recorded are in balance. Gross Weight must equal Net Weight plus Tare Weight.

    • If only the Gross weight is available to the user, the system calculates the impact on the Net Weight using Gross - Tare.
    • If only the Net weight is available to the user, the system will calculate the impact on the Gross weight using Net + Tare.
    Note: The tare weight will remain a constant from the item configuration unless you specify another tare weight.
