Adding a new tote ID with cluster picking

  1. From the RF device Main Menu, select Picking (4). The Pick Menu (PM1) screen is displayed.

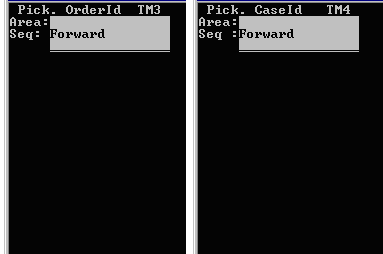

  2. Select Cluster Picking (1). The Cluster Pick (TM20) screen is displayed.

  3. Do one of the following:
    • If picking orders, select By Order ID.
    • If picking cases, select By Case ID.
  4. To return to the Pick Menu screen, press Esc.

  5. Specify the area.
  6. Do one of the following:
    • To perform the pick tasks in Forward (ascending) order, press F.
    • To perform the tasks in Reverse (descending) order, press R.
  7. Press Enter. The application returns a list of blank numbered lines.
  8. Do one of the following:

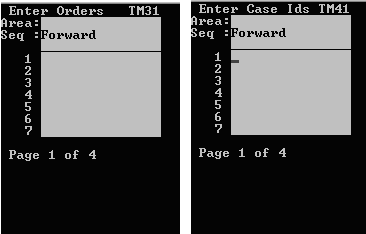

    • For the Enter Orders (TM31) screen, specify the shipment order number for each order to be picked, up to 30.
    • For the Enter Case IDs (TM41) screen, specify the Tote/case IDs, up to 30.

  9. After you specify the last order or case ID, press Enter twice. The application returns the first pick, based on the selection sequence.

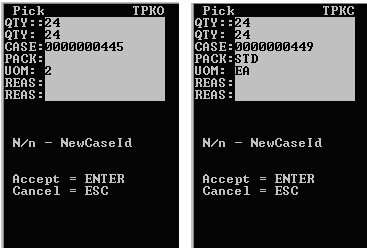

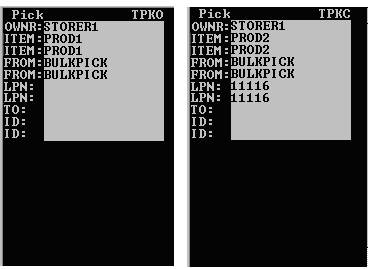

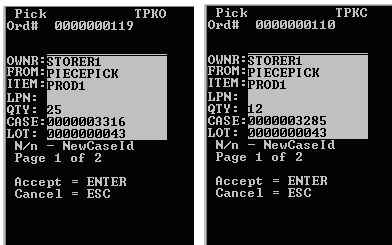

  10. To accept the pick, press Enter. A new Pick (TPKO2 or TPKC2) screen is displayed.

    Note:  If special instructions exist, a separate screen is displayed with instructions. See Special instructions for cluster picking.
  11. Specify this information:
    FROM
    Location of the item before picking.
    Item
    Item being picked.
    LPN
    License plate number associated with the item.
    QTY
    Amount of item in the designated location.
    TLpn
    Drop ID (LPN) of the Item being picked to.
    to
    Location of the item after picking.
    REAS
    Reason code, if applicable. Whenever you short-pick a task, enter a reason code.

    The application enters information into the following fields; you do need to confirm the information:

    CASE
    Case ID or Label number associated with the pick task.
    PACK
    Pack for the item.
    ITEM
    Item code (Required).
    Note:  After you press Enter on the last field, the N/n - New Case ID message displays. Enter a different case ID.
