Downtime Collection Mode

Automatic

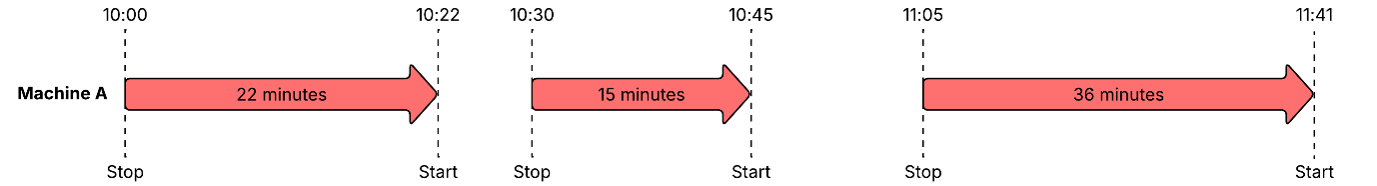

In automatic mode, a direct connection to the PLC enables real-time recording:

  • Exact machine stop and start times are recorded.
  • The start and stop times cannot be modified manually.
  • Machine stops as short as one second are recorded by the PLC.
  • Downtime reasons can be automatically identified or later assigned by an operator.
pic23

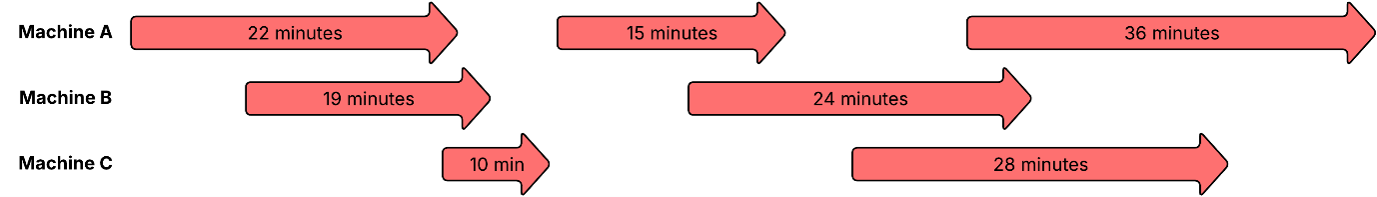

In automatic mode, downtime is recorded for all machines in the line with PLC signals available.

pic24

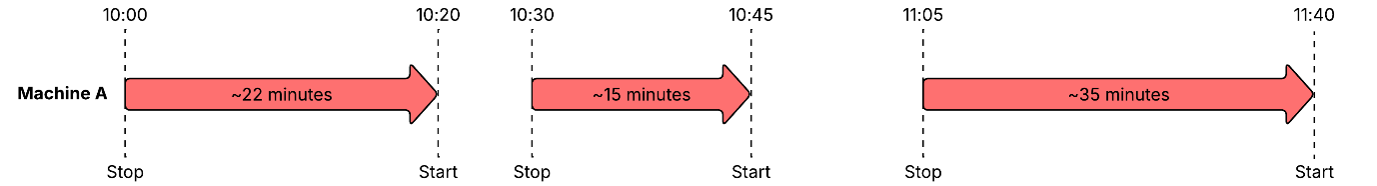

Manual Real-Time

In manual real-time mode, operators manually control machines stop and start events, resulting in the following characteristics:

  • Recorded times are intended to align with actual machine start and stop events.
  • Additional effort is required from operators.
  • Accuracy is lower compared to automatic data collection.
  • Stop and start times are often based on operators estimation.
  • Short duration stops are not usually recorded by the operator.
  • Recorded reasons represent the operator’s understanding of the issue.
pic 25

Manual Retrospective

Operators either log the duration of the downtime:

  • At the end of the Machine Stop.
  • Or summarized at the end of the Job or Shift.

The start and stop time of each machine stop is not logged.

  • Only total downtime duration is logged.
  • The total duration is an estimate, usually based on paper notes from the shift.
  • Short stops are usually excluded.
  • Recorded reasons reflect operators understanding of the issue.
pic25
