Check-in related drawing files
When user performs Check-In operation on a Drawing, the integration will Check-In its related model. Also, if Check-In operation is performed on a model, the integration will Check-In its related drawings.

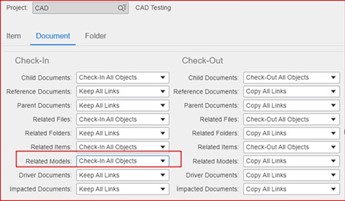

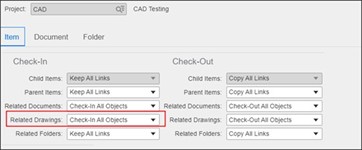

To enable this functionality, PLM Administrator needs to set the Projects’ Vault Parameter.

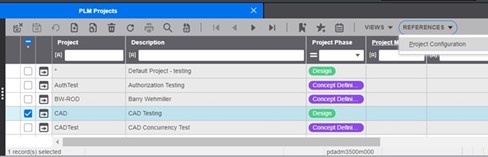

Open PLM Projects (pdadm3500m000) session. Select menu and click .
If any of the drawing files of the model is missing during the check-In operation, the following dialog box indicates the missing drawings.
