Configuring the Integration in AutoCAD

  1. Install the integration kit.
  2. Go to the folder %cfe_client_home%\AutoCAD and modify the file LoadAddin.lsp as shown below. The path should contain “\\”.
  3. Start the AutoCAD application.

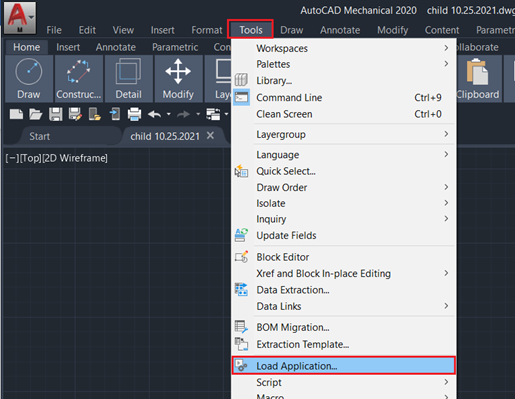

  4. In the AutoCAD application menu click Tools > Load Application as shown in the following screen.

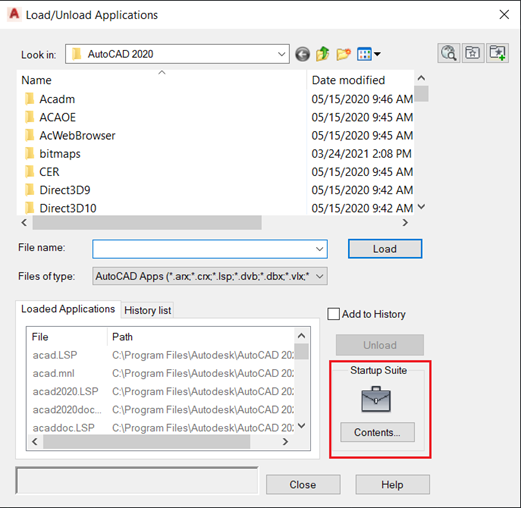

  5. Click Contents in the StartUp suite control box.

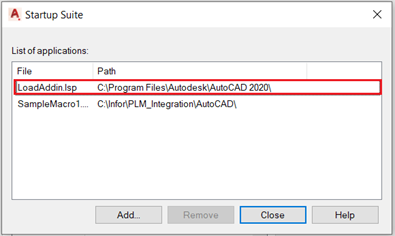

  6. Select %cfe_client_home%\AutoCAD\LoadAddin.lsp file in the Startup Suite.
  7. Close all the dialog box and return to the application.

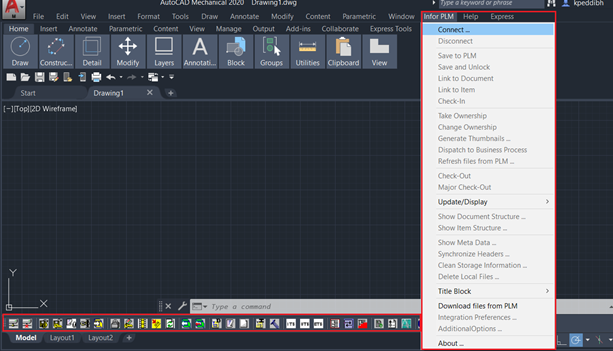

  8. Close the application and restart the AutoCAD application. When the application is up and running, integration toolbar and Menu are visible. The following screen shows the Integration toolbar and menu.
