REST API Modeler user interface

You can navigate through the application using the side and split menu for easy access to all sections.

Side menu

The application features a side menu that facilitates navigation to different sections. The side menu includes these sections:

Container
Entity Types
Complex Types
Actions
Enum Types
Functions
Type Definitions
Included Services

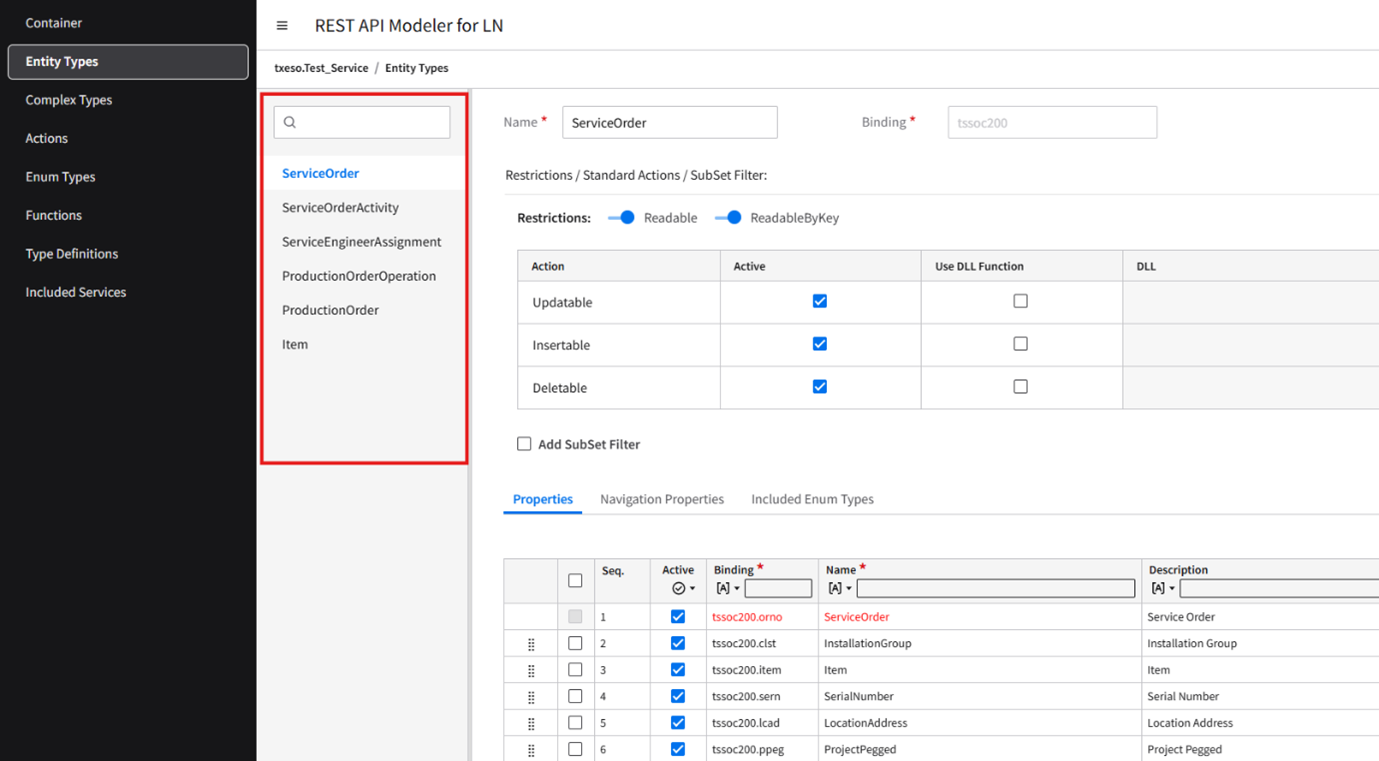

Split menu

Each section, except for Container, includes a split menu listing the elements for that section. When you navigate to a section from the side menu, such as Entity Types or Complex Types, the first element is automatically selected, and its content is displayed on the right side of the split menu.

To search for an element, specify some characters in the search box.

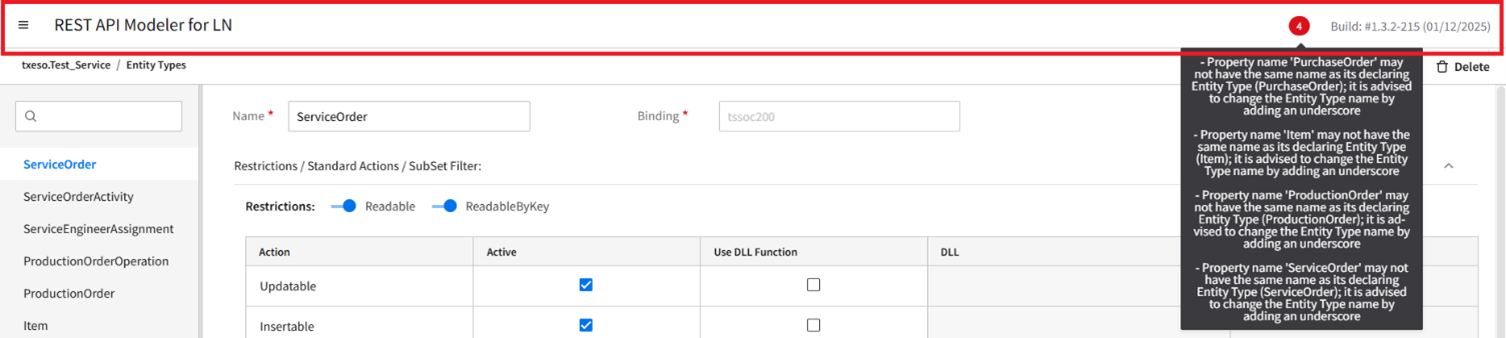

Main header

This section displays the title and other important information.

Error indicator: Displays the number of errors when the service is saved. Hover over the indicator to view detailed error information in a tooltip.
Build: Displays the build number along with the release date.

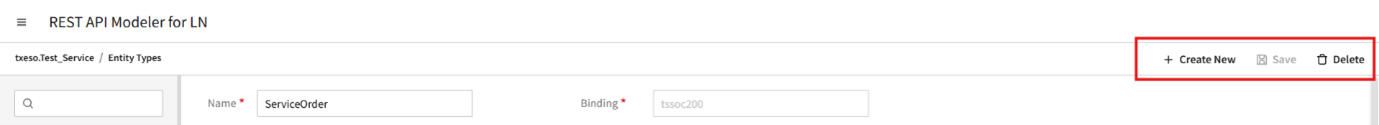

Create New, Save, and Delete

If an element is available within a section, these buttons are displayed at the top right corner:

Create New: Used to create an element in the section.
Save: Used to save the service. This button is enabled only when all mandatory fields contain valid data.; Note: If any errors occur, they will be shown in the error indicator.
Delete: Used to delete the data.
