Opening file in a PLM Structure view

You can open a part file directly from the integration in an PLM item or document structure view.

To open a document structure in PLM:

  1. Create a part file and save it to PLM. See Saving to PLM.
  2. Select Document Structure or Item Structure in the PLM menu.

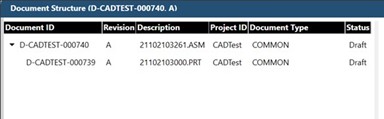

    The document structure view displays the document and child documents that was created in PLM. The item structure displays the items and BOM that were created for that document with the child items (BOM).
