Custom implementations

You can debug custom implementations, such as custom destination types, custom e-mail implementations, and custom fax implementations, using Infor LN Studio. These custom implementations are libraries that are called by these sessions:

  • Document Rendering and Distribution (ttrpi3210m000)
  • Documents (ttrpi3510m000) - Select the View Document action.

The custom receiver type implementation is called during printing of the original LN report to the Document Output Management device.

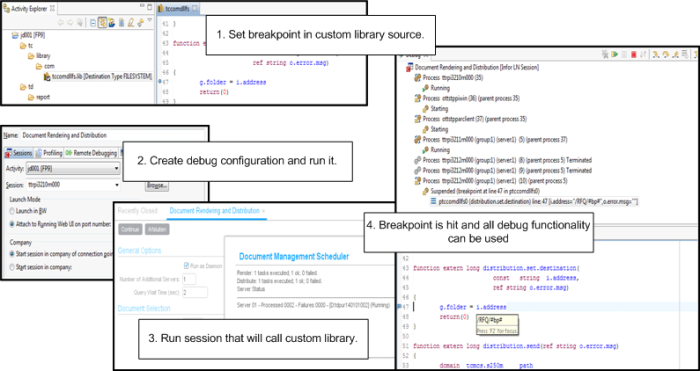

Complete these steps:

  1. Set breakpoint in library.
  2. In case of Web UI, create a launch configuration for one of the sessions mentioned earlier and launch that session in debug mode from Infor LN Studio.
  3. In case of LN UI, start the Debug and Profile 4GL (ttadv1123m000) session.
    Select your activity and select the debug check box. Click OK. Start one of the sessions mentioned earlier from LN UI.
