Supported Message Flows

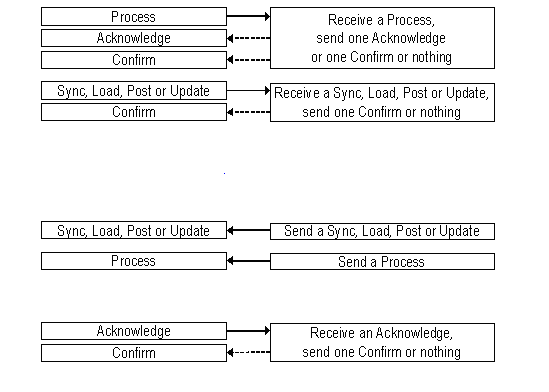

The following message flows are supported in LN:

When an error occurs and no ConfirmBOD is published (and the error is also not reported back to the sending LN application), an error message is published.

Note: The Get/Show cycle is currently unavailable. You cannot send or receive Get BODs or Show BODs in LN.

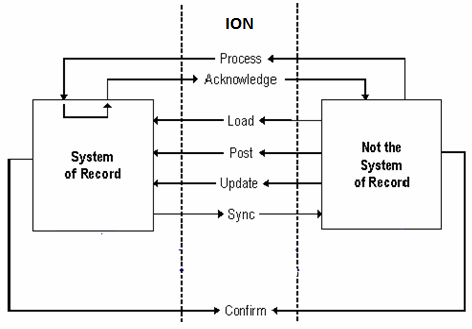

Each LN company is an application instance in the network. It will have its own connection point to ION. An application instance can be the owner for a specific object or object instance. In that case it is called ‘system of record’ (SOR). The following figure shows the messages that can be sent from or to a SOR. Error messages (ConfirmBODs) are always handled by the CSI (Common Services Infrastructure) application. Note that the CSI can resend rejected messages to one of the applications; this is not displayed in the following picture.
