Inheritance of context messages

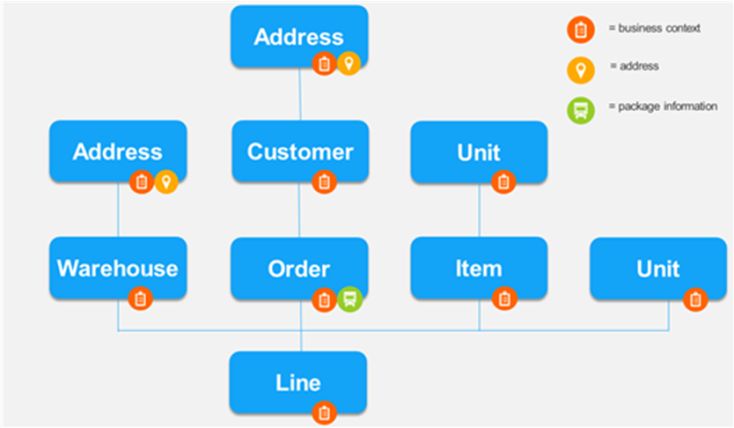

The diagram contains an example data model and context message types to explain the inheritance of context messages:
If the model is generated with full inheritance, the context messages on Line level listed in this table can occur:
Entity | Context Messages |
---|---|
Line | Business Context |
Warehouse | Business Context |
Address (1) | Business Context, Address |
Order | Business Context, Package Information |
Customer | Business Context |
Address (2) | Business Context, Address |
Item | Business Context |
Unit (1) | Business Context |
Unit (2) | Business Context |
When looking at Line, the Business Context message is sent for nine entities, the Address message for two entities and the Package Information for one entity. This makes the information in the web parts too superfluous to be of any help to the end user.
There are two ways to reduce the number of context messages:
- Bottom up.
- Top down.
