Text Parameters Procedure

To use text in LN, basic parameters must be specified. These parameters provide the users with the basic requirements to write and edit text.

Only the most important steps in the procedures are described. For detailed instructions on how to enter data in the sessions that are mentioned in the procedure steps, see the online help of the sessions.

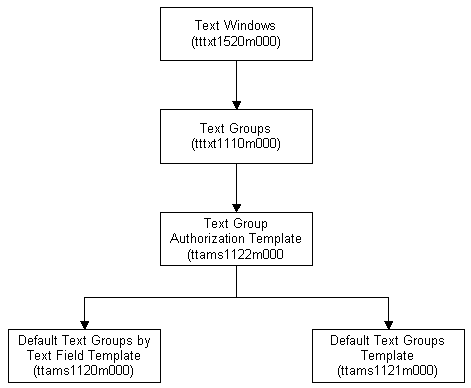

This diagram shows the steps to define the text parameters:

[...]
Istruzione 1. To create text windows

You must specify the text window’s properties, which define the layout of the text window.

  1. On the LN Tools menu, select Text Management > Text Parameters > Text Windows. The Finestre testo (tttxt1520m000) session appears.
  2. Click the New button on the toolbar. The Finestre testo (tttxt1520m000) details session appears.
  3. Specify the text window’s properties. If you use the multiline editor, only the number of columns and number of rows are relevant.
  4. Click Save to save the text window’s properties, and then click Close to quit the session.
Istruzione 2. To create text groups

You must define the text group ’s properties. For every type of text you can define text groups with specific properties.

  1. On the LN Tools menu, select Text Management > Text Parameters > Text Groups. The Gruppi testi (tttxt1110m000) session appears.
  2. On the tool bar, click the New button . In the Gruppo testo field, enter the default text group’s identifier.
  3. In the Editor esterno field, type or select the default text group’s text editor the user can use to write or edit text.
  4. In the Finestra predefinita field, type or select the text window in which the text must be presented.
  5. Click the Save button and then quit the session.
Istruzione 3. To create the template for the text group authorizations

In the text group authorizations template, you must specify the user’s authorization to edit the text in LN. For example, you can give the users who are linked to the template permission to read, use, or update text. The text group authorization template is linked to the user in the Dati utente (ttaad2500m000) session.

  1. On the LN Tools menu, select Text Management > Text Parameters > Text Group Authorization Template. The Modello autorizzazione gruppi di testo (ttams1122m000) session appears.
  2. On the toolbar, click the New Group button. In the Template Code field, enter the default text group’s identifier.
  3. On the toolbar, click the New button . Use the Tutte le società check box, or Società field, to define for which companies the template must apply.
  4. In the Gruppo testi, Numero testo field enter the text group for which you must specify the text authorizations for the users that are linked to the template.
  5. In the Autorizzazione field, define the text authorizations for the users that are linked to the template.
  6. Click the Save button and then on the Visualizzazioni, Riferimenti, o Azioni menu, click Converti modifiche in DD runtime to convert the template data to the run-time data dictionary.
  7. Quit the session.
Istruzione 4. To create the default text groups by text field template

In the default text groups by text field template, you must specify the text group for a specific text field. If you do not specify a default text group for a text field, LN uses the template that is defined in the default text group template.

  1. On the LN Tools menu, select Text Management > Text Parameters > Default Text Groups by Text Field Template. The Gruppi di testo predefiniti per Modelli campi di testo (ttams1120m000) session appears.
  2. On the toolbar, click the New Group button . In the Codice modello field, enter the default text group’s identifier.
  3. On the toolbar, click the New button . Use the Tutte le società check box, or Società field, to define for which companies the template must apply.
  4. In the Campo tabella testo Field, type or select a text field for which this template must be used.
  5. In the Gruppo testi, Numero testo field, type or select a default text group for the text field.
  6. Click the Save button and then on the Visualizzazioni, Riferimenti, o Azioni menu, click Converti modifiche in DD runtime to convert the template data to the run-time data dictionary.
  7. Quit the session.
Istruzione 5. To create the template for the default text groups

In the default text groups template, you must specify the text group LN must use if you have not specified a specific text group for a text field.

  1. On the LN Tools menu, select Text Management > Text Parameters > Default Text Groups Template. The Modelli gruppi di testo predefiniti (ttams1121m000) session appears.
  2. On the toolbar, click the New Group button . In the Codice modello field, enter the default text group’s identifier.
  3. On the toolbar, click the New button . Use the Tutte le società check box, or Società field, to define for which companies the template must apply.
  4. In the Gruppo testi, Numero testo field, specify or select a default text group for the template.
  5. Click Save.
  6. Click Converti modifiche in DD runtime to convert the template data to the run-time data dictionary.

  7. Quit the session.

    To link the templates to a user, use the Dati utente (ttaad2500m000) session.
