Assembly Order Purging and Sequence Renumbering

Sometime you must remove assembly orders for a range of assembly lines from the line sequence. This removes all related data from LN and renumbers the line sequence.

Positions that have an assembly order are only purged from the line sequence if:

  • The planned offline date of the order is before the specified upto date.
  • On all segments of the roll-off line for the order, all orders on the positions prior to the position of the specified order are completed.
[...]
[...]

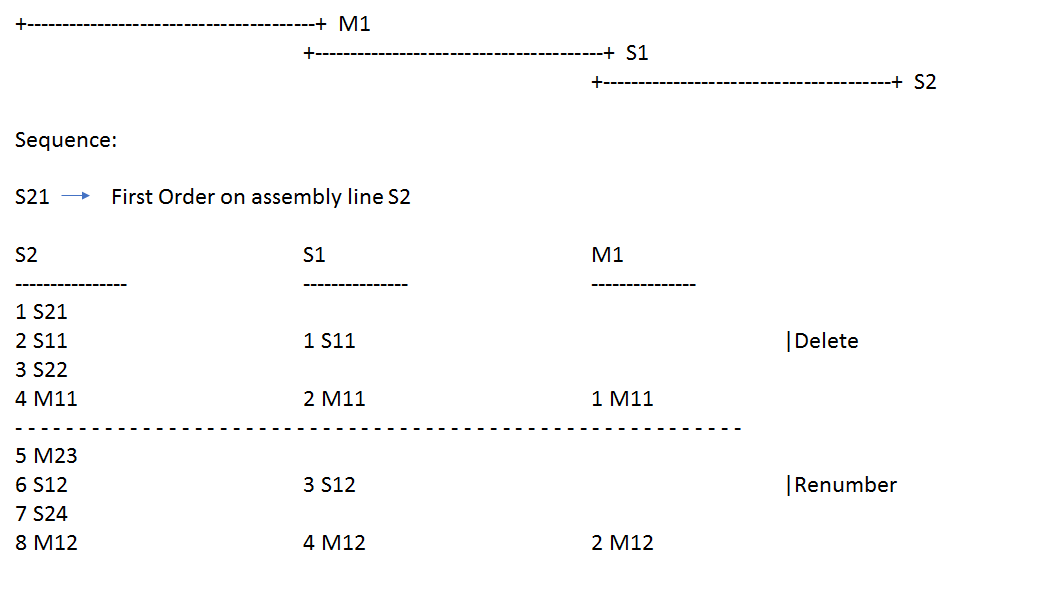

Line S1 supplies to line M1.

Line S2 supplies to S1.

Order S21 is on position 1 of its roll-off line S2.

To purge this order, line S2 must be selected.

Similarly, to purge order S11, roll-off line S1 must be selected.
