Business function model

A business function model is built from a selection of business functions initially created in the repository. The presence, or absence, of business functions in the business function model during the implementation phases of the LN software is used for the following purposes:

To select and configure business processes based on transformation setting rules and static condition setting rules.
To set the LN application parameters based on parameter-setting rules.

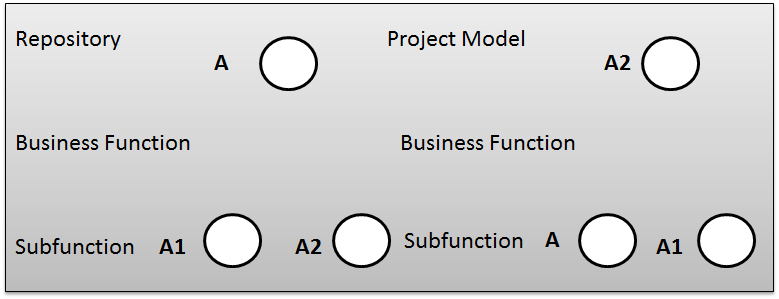

Business functions can be defined in the repository in a hierarchical structure; therefore, a function can have subfunctions. This structure is used as an aid while defining the business functions, and does not have to be maintained when you import business functions into a project model.

For more details, see the 从资源库插入业务功能时的选项 (tgbrg3270m000) session.

Business functions that appear in several business control diagrams only appear once in the business function model. Business functions at the lowest level of the hierarchy are implementation variants of business functions, referred to as business function variants or options.

按项目模型列出的业务功能 (tgbrg4570m000)

Use the 按项目模型列出的业务功能 (tgbrg4570m000) session for the following purposes:

To restructure the business function model according to the business functions that must be used in the project model.
To define the optimization relationships; these indicate that a certain business function variant is an optimization of another business function variant.
To define the optimization phases; these indicate when a certain business function variant must be implemented.

To start this session:

Select a project model and on the 相应 menu of the 项目模型 (tgbrg4500m000) session.
Click 业务功能模型..., or 业务功能模型....

In this session you cannot modify business function data; this can only be done in the 业务功能 (tgbrg2500m000) session in the repository. You can only import business functions from the repository into the Business Function Model and set up a new hierarchical structure.

To create a business function model:

In the 业务功能 field, select a business function you want to include in the business function model.
From this field you can zoom to the 业务功能 (tgbrg2500m000) session and select a business function from the repository.

Field	Description
Key fields for the 按项目模型列出的业务功能 (tgbrg4170s000)
外部代码	Specify a code that indicates the position of that business function in relation to other business functions.
父业务功能	Select a business function to which the current business function will be linked, and which is one level above the current business function.
向导	Zoom to the 向导 (tgwzr1500m000) session and link an existing predefined wizard to the business function

从资源库插入业务功能时的选项 (tgbrg3270m000)

Importing a business function from the repository into a project model, the 从资源库插入业务功能时的选项 (tgbrg3270m000) session is started.

This session can be used to indicate the aspects of the business functions you selected from the repository, which you want to include in the business function model.

When you import business functions from the repository, complete the following steps:

To import those business functions that are linked on lower levels to the business function, select the 同时从资源库中插入子业务功能 check box. This way, you copy a part of the business function structure from the repository to the project model.
To overwrite the data listed below when you import the business function to the business function model, select the 改写现有子项的业务功能属性 checkbox:
- Parent business function
- Wizard
- External code
To copy the parent-child relationship from the repository to the business function model, select the 恢复与现有子项的关系 check box.
Click 继续...

按业务功能列出的优化阶段 (tgbrg4535m000)

To link one or more optimization phases to a business function, use the 按业务功能列出的优化阶段 (tgbrg4535m000) session.

To start this session:

On the 相应 menu of the 按项目模型列出的业务功能 (tgbrg4570m000) session, click the 链接阶段至业务功能..., or 链接阶段至业务功能...

To link an optimization phase to a business function, complete the following steps:

Select a business function.
Click New
In the 优化阶段 field, select the optimization phase you want to link to the business function.
Click 保存

Carrying out wizards

If all the relevant business functions have been included in the business function model, you can set the parameter values by executing the wizards linked to the business functions.

There are two ways in which you can carry out the wizards:

Firstly, you can activate the向导浏览器...; to do this:
- On the 相应 menu of the 按项目模型列出的业务功能 (tgbrg4570m000) session, click 向导浏览器....
- This option activates a browser with all the wizards linked to the business functions in the business function model.
- To carry out the wizards listed here:
  - On the 相应 menu, double-click the Wizard icon, or Execute Wizard.
- When a part of a wizard has been carried out and the answers have been saved, a red check mark is placed through the Wizard icon.
Secondly, in the Modeler, you can click the Wizard icon below a business function.

To view the wizards represented in a tree structure and linked to the business functions present in the business function model, in the Wizard Browser’s 相应 menu, cancel the Show only Wizards option.

You can cancel the execution of a wizard even if all the steps are incomplete. If you do this, you can save the wizard step answers you have already given. If a wizard has not been completely finished, the check mark is placed through the icon in the 向导浏览器.... Therefore, it is important to remember if a wizard was carried out without completing all the wizard steps.

按公司和项目模型列出的向导应答 (tgwzr4501m000)

When you have carried out all wizard steps, the following question is asked:

Show wizard step answers ?
- If you click 是, the 按公司和项目模型列出的向导应答 (tgwzr4501m000) session is started.

Use this session to modify the answers you have initially given. Furthermore, you can execute the complete wizard again, or execute a particular step and change the given answer in this way.

To change the given wizard step answers, complete the following steps:

In the 应答 field, select a wizard step answer that must replace the answer you have initially given. The answers you can choose are based on the domain linked to the parameter whose value you want to set by the wizard.
Click 保存

注意

If the 已应用 check box is selected, the wizard-step answers will be applied in the business function model. However, the wizard-step answers will not be applied until you exit the business function model.

Closing the business function model

When you have included all the relevant business functions in the business function model, and all the wizards have been carried out, the business function model can be closed. When you exit the business function model, the following questions can appear, depending on what type of data was modified:

Check Consistency?
Transform Business Function Model to Process Model?
Set Static Conditions based on Rules?
Set Parameters based on Rules?
Write Parameters to the Database?
Apply Wizards?
Write Parameters to the Database?

These questions refer to steps that can also be taken manually; they are further explained in other sections of this chapter.

检查项目模型一致性 (tgbrg4220m000)

To check whether the business function model is created according to the consistency rules defined in the repository:

Start the 检查项目模型一致性 (tgbrg4220m000) session
To start the session, on the 相应 menu of the 按项目模型列出的业务功能 (tgbrg4570m000) session, click 检查项目模型一致性

When you create a business function model, you can make consistency errors; for example, you can forget to include business functions that should be included according to the consistency rules you defined in the repository.

The check will be carried out for the combination of the current modeling version and project model. You can also specify an optimization phase for which the check should be carried out. If no phase is specified, the consistency check is carried out for all optimization phases defined for the project model.

The result of the consistency check is displayed in a message box, while the rules are printed to the device that you select. If a given rule is not met, the result is also printed.

Set Current Optimization Phase

To start the 按项目模型列出的优化阶段 (tgbrg4530m000) session:

On the 相应 menu of the 按项目模型列出的业务功能 (tgbrg4570m000) session, click 将所有优化阶段设置为当前的优化阶段
In this session you can select all phases at the same time; to do this, click Select All, or select one specific optimization phase.
- Because of the selection you made, the 按项目模型列出的业务功能 (tgbrg4570m000) session only shows those business functions linked to the optimization phase you have selected as current.
- If you click Select All, all business functions linked to the project model are displayed.

Set all Optimization Phases as Current

On the 相应 menu of the 按项目模型列出的业务功能 (tgbrg4570m000) session:

Select 将所有优化阶段设置为当前的优化阶段
Assign all optimization phases as current.

This means all business functions in the project model are displayed in the 按项目模型列出的业务功能 (tgbrg4570m000) session.
