Graphical objects used in the Business Process Model

Activity

[...]

An activity represents work to do in the form of:

  • Manual activity; a not (in LN) automated task
  • Business process; links a sub-process
  • Application; starts an application of the selected component
[...]Linked URL iconIndicates that an URL is linked to the activity. Click on the icon to start the URL
[...]Linked AO Document iconIndicates that an AO document is linked to the activity.
[...]Sub Applications iconIndicates that sub application authorization has been setup for the activity
[...]Linked Roles on Activity Level iconIndicates that Roles authorization is setup for the activity
[...]Support Application iconIndicates that a support application has been linked to the activity

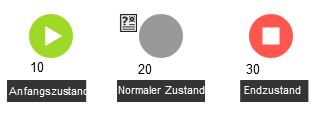

State

[...]

Represents a particular point in time.

Control activity

[...]

A control activity represents a decision moment and can be one of the following:

  • XOR; only one of the paths must be executed
  • OR; one or more of the paths can be executed
  • AND; all paths must be executed
  • JOIN; to join the paths split by XOR, OR or AND
[...]Linked URL iconIndicates that an URL is linked to the activity. Click on the icon to start the URL
[...]Linked Roles on Activity Level iconIndicates that Roles authorization is setup for the activity



Relationship

[...]

Indicates the flow of activities in the business process.

Valid relations:

  • Between State and Activity
  • Between State and Control Activity
Business Process Diagram objects toolbar
ButtonDescription
[...]To insert an Activity to represent work to do
[...]To insert a State that defines a particular point in time
[...]To insert a Control Activity that represents a decision moment
[...]To insert a Relationship
