Related Objects

The Related Objects (dmsys1113m000) session contains the following data fields:

Main ObjectDisplays the main object ID, which acts as an identifier. The main object ID is an ERP entity that is defined in ODM and can have relations with other objects in the ERP functionality.
Related ObjectDisplays the related object, which is related to the main object in a functional flow and defined in ODM along with the main object.
Reference FieldDisplays the reference field ID. The table field of main object must have a hard reference to the table field of the related object.
Label DescriptionThe description of the related object (name) that is to be displayed when the document revision attached to the object is shown.

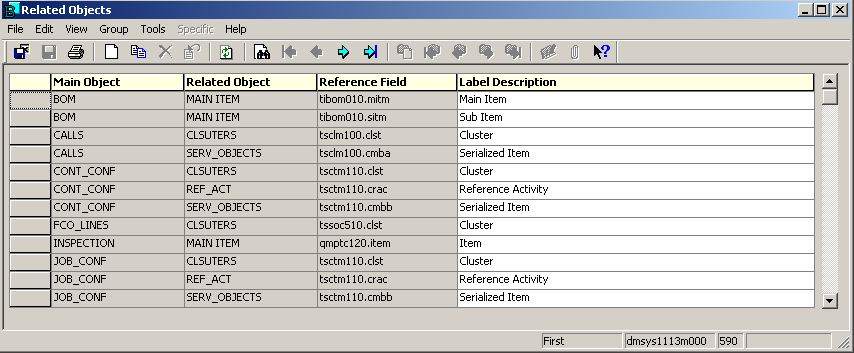

The following figure shows the Related Objects (dmsys1113m000) session:
[...]

The following table displays the data present in the Related Objects (dmsys1113m000) session:

Main ObjectRelated ObjectReference FieldLabel Description
A ITEM BUDGETPROJECT ITEMtpptc220.itemProject Item
ADJ_ORDER_LINESWH_ITEMwhinh501.itemWarehouse Item
ASSIGNMENTEMPbpmdm030.emnoEmployee - People
BOMGEN_ITEMtibom010.sitmComponent item
BOMITEM_PRODUCTIONtibom010.mitmMain Item production data
CALLSCLUSTERStsclm100.clstCluster
CALLSSERV_OBJECTStsclm100.cmbaSerialized Item
CONTRACT_CONFCLUSTERStsctm110.clstCluster
CONTRACT_CONFREF_ACTtsctm110.cracReference Activity
CONTRACT_CONFSERV_OBJECTStsctm110.cmbbSerialized Item
CONT_CONFCLUSTERStsctm110.clstCluster
CONT_CONFREF_ACTtsctm110.cracReference Activity
CONT_CONFSERV_OBJECTStsctm110.cmbbSerialized Item
CYCLE_ORDER_LINEWH_ITEMwhinh501.itemWarehouse Item
E ITEM BUDGETPROJECT ITEMtpptc120.itemProject Item
EBOMEITEMtiedm110.eitmEngineering Main Item
EBOMEITEM_REVtiedm110.cmbbEngineering item revision
EMPEMPLOYEESbpmdm001.emnoEmployee - General
EST_AND_ACT_MATGEN_ITEMticst001.sitmComponent item
FCO_LINESCLUSTERStssoc510.clstCluster
FREIGHT_ITEMGEN_ITEMfmfmd100.itemItem
FREIGHT_ORD_LINEFREIGHT_ITEMfmfoc201.itemFreight Item
GENERIC_BOMITEM_PRODUCTIONtipcf310.mitmMain item
GENERIC_BOMITEM_PRODUCTIONtipcf310.sitmComponent item
GEN_ITEMGEN_ITEMtcibd001.dfit"Derived from" Item
HANDL_UNITSWH_ITEMwhwmd530.itemWarehouse Item
INB_ORD_LINESWH_ITEMwhinh210.itemWarehouse Item
INSPECTIONS-TESTGEN_ITEMqmptc120.itemItem
INV_COMMITWH_ITEMwhinp200.itemWarehouse Item
ITEM_PRODUCTIONGEN_ITEMtiipd001.itemGeneral Item Data
ITEM_PURCHASEGEN_ITEMtdipu001.itemGeneral Item Data
ITEM_SALESGEN_ITEMtdisa001.itemItem General Data
JOB_CONFCLUSTERStsctm110.clstCluster
JOB_CONFREF_ACTtsctm110.cracReference Activity
JOB_CONFSERV_OBJECTStsctm110.cmbbSerialized Item
LOADSCARRIERwhinh440.cardDelivery Carrier
LOADSCARRIERwhinh440.carpPick-up Carrier
MSC_LINESCLUSTERStsmsc110.clstCluster
MSC_LINESSERVICE_CONTRACTtsmsc110.cscoService Contract
OUT_ADVICEWH_ITEMwhinh225.itemWarehouse Item
OUT_ORD_LINESWH_ITEMwhinh220.itemWarehouse Item
PHYS-BREAKDOWNSERV_OBJECTStscfg210.cmbbChild Serialized Item
PLANACT_LABTASKStsspc211.ctskTask
PLANNED_ACTIVITIREF_ACTtsspc200.cracReference Activity
PLN PRP PO_MATPROJECT ITEMtppss610.itemProject Item
PLN PRP WH_MATPROJECT ITEMtppss615.pitmProject Item
PRODUCTION_ORDERITEM_PRODUCTIONtisfc001.mitmMain Item Production Data
PUR_CONTRACTADDRESStdpur300.otadAddress code
PUR_CONTRACTBUY_FROM_BPtdpur300.otbpBuy from BP
PUR_CONTRACTCARRIERtdpur300.cfrwCarrier
PUR_CONTRACTCOUNTRYtdpur300.cctyTax country
PUR_CONTRACTLATE_PAYMENT_SURtdpur300.ccrsLate payment Surcharge
PUR_CONTRACTPUR_OFFtdpur300.cofcpurchase office
PUR_CONTRACTPUR_ORDER_TYPEtdpur300.cotppurchase order type
PUR_CONTRACTSHIP_FROM_BPtdpur300.sfbpShip from BP
PUR_CONTRACTTERMS_OF_DELIVERtdpur300.cdecTerms of delivery
PUR_CONTRACTTERMS_OF_PAYMENTtdpur300.cpayTerms of payment
PUR_CONTRACTWAREHOUSEtdpur300.cwarWarehouse
PUR_CONTRACT_LNADDRESStdpur301.sfadAddress code
PUR_CONTRACT_LNEFFECTIVITY_UNITtdpur301.effnEffectivity Unit number
PUR_CONTRACT_LNEMPLOYEEStdpur301.cconbuyer
PUR_CONTRACT_LNITEM_PURCHASEtdpur301.itemItem purchase data
PUR_CONTRACT_LNPUR_OFFtdpur301.cofcpurchase office
PUR_CONTRACT_LNSHIP_FROM_BPtdpur301.sfbpShip from BP
PUR_CONTRACT_LNWAREHOUSEtdpur301.cwarWarehouse
PUR_CONTR_LN_LDCARRIERtdpur302.cfrwCarrier
PUR_ORDRPUR_OFFtdpur400.cofcpurchase office
PUR_ORD_LINEITEM_PURCHASEtdpur401.itemItem purchase data
PUR_REQPUR_OFFtdpur200.cofcPurchase Office
PUR_REQ_LINESITEM_PURCHASEtdpur201.itemItem purchase data
PUR_RFQPUR_OFFtdpur100.cofcPurchase Office
PUR_RFQ_LINEITEM_PURCHASEtdpur101.itemItem Purchase Data
PUR_SCHEDULESADDRESStdpur310.bfadAddress code
PUR_SCHEDULESBUY_FROM_BPtdpur310.bfbpBuy from BP
PUR_SCHEDULESCOUNTRYtdpur310.cctyTax country
PUR_SCHEDULESEXCHANGE_RATEtdpur310.rattExchange rate type
PUR_SCHEDULESITEM_PURCHASEtdpur310.itemItem purchase data
PUR_SCHEDULESPUR_CONTRACTtdpur310.conoPurchase contract number
PUR_SCHEDULESPUR_OFFtdpur310.ccofpurchase office
PUR_SCHEDULESPUR_ORDER_TYPEtdpur310.cotppurchase order type
PUR_SCHEDULESSHIP_FROM_BPtdpur310.sfbpShip from BP
PUR_SCHEDULESWAREHOUSEtdpur310.cwarWarehouse
PUR_SCHEDULE_LNBUY_FROM_BPtdpur311.otbpBuy from BP
PUR_SCHEDULE_LNGENERAL_PROJECTtdpur311.cprjProject
PUR_SCHEDULE_LNPURCHASE_TYPEtdpur311.ptpepurchase type
PUR_SCHEDULE_LNSHIP_FROM_BPtdpur311.sfbpShip from BP
PUR_SCHEDULE_LNWAREHOUSEtdpur311.cwarWarehouse
REF_ACT_REQSTASKStsacm220.ctskTask
REG_INSPECTIONSREF_ACTtssoc250.cracReference Activity
SALES_CONTRACTADDRESStdsls300.ofadSold-to Address
SALES_CONTRACTCARRIERtdsls300.cfrwCarrier
SALES_CONTRACTCOUNTRYtdsls300.cctyCountry
SALES_CONTRACTEMPLOYEEStdsls300.crepInside Sales Representative
SALES_CONTRACTEMPLOYEEStdsls300.osrpOutside Sales Representative
SALES_CONTRACTLATE_PAYMENT_SURtdsls300.ccrsLate payment Surcharge
SALES_CONTRACTORDER_TYPEtdsls300.sotpSales Order type
SALES_CONTRACTSALES_OFFICEtdsls300.cofcSales office
SALES_CONTRACTSOLD_TO_BPtdsls300.ofbpSold to BP
SALES_CONTRACTTERMS_OF_DELIVERtdsls300.cdecTerms of delivery
SALES_CONTRACTTERMS_OF_PAYMENTtdsls300.cpayTerms of payment
SALES_CONTR_LINEEFFECTIVITY_UNITtdsls301.effnEffectivity Unit number
SALES_CONTR_LINEITEM_SALEStdsls301.itemItem Sales data
SALES_CONTR_LINESALES_OFFICEtdsls301.cofcSales office
SALES_OL_DELIVERADDRESStdsls401.stadShip-to BP Address
SALES_ORDERORDER_TYPEtdsls400.sotpSales Order Type
SALES_ORDERSALES_OFFICEtdsls400.cofcSales Office
SALES_ORDERSOLD_TO_BPtdsls400.ofbpSold to BP
SALES_ORDER_LINEITEM_SALEStdsls401.itemItem Sales data
SALES_ORDER_LINESHIP_TO_BPtdsls401.stbpShip-to BP
SALES_RELEASESOLD_TO_BPtdsls312.ofbpSold to BP
SALES_SCHEDULEADDRESStdsls311.ofadAddress code
SALES_SCHEDULECOUNTRYtdsls311.cctyTax Country
SALES_SCHEDULEEMPLOYEEStdsls311.sllrseller
SALES_SCHEDULEEXCHANGE_RATEtdsls311.rattExchange rate type
SALES_SCHEDULEITEM_SALEStdsls311.itemItem Sales data
SALES_SCHEDULESALES_CONTRACTtdsls311.conoSales contract
SALES_SCHEDULESALES_OFFICEtdsls311.ccofContract office
SALES_SCHEDULESALES_OFFICEtdsls311.cofcSales office
SALES_SCHEDULESOLD_TO_BPtdsls311.ofbpSold to BP
SEQ_SHIPPING_INFITEM_SALEStdsls317.itemItem Sales data
SEQ_SHIPPING_INFSOLD_TO_BPtdsls317.ofbpSold to BP
SERVICE ORDER ACCHECKLISTtssoc210.cchlCheck List
SERVICE ORDER ACCLUSTERStssoc210.clstCluster
SERVICE ORDER ACSERVICE_CONTRACTtssoc210.cscoService Contract
SERVICE ORDERSCLUSTERStssoc200.clstCluster
SERVICE ORDERSSERVICE_AREAStssoc200.csarService Area
SERVICE ORDERSSERVICE_CONTRACTtssoc200.cscoService Contract
SERVICE ORDERSSERVICE_EMPLOYEEtssoc200.emnoService Engineer
SERVICE ORDERSSERV_ORD_QUOTATtssoc200.csquService Order Quotation
SERVICE_CONTRACTCONT_QUOTATIONtsctm300.ccquContract Quotation
SHIPMENTSADDRESSwhinh430.sfadShip-from Address
SHIPMENTSADDRESSwhinh430.stadShip-to Address
SHIPMENT_LINE_FMFREIGHT_ITEMfmlbd350.itemFreight Item
SHIPMENT_LINE_FMFREIGHT_ORD_LINEfmlbd350.cmbbFreight Order Line
SHIP_LINESWH_ITEMwhinh431.itemWarehouse Item
SO_LABOR_ATASKStssoc230.ctskTask
SO_LABOR_ETASKStssoc230.ctskTask
SUBCONTRACT_MANASERVICE_CONTRACTtssbm100.cscoService Contract
WH_ITEMGEN_ITEMwhwmd400.itemItem
WO_MATWO_ACTtswcs410.cmbbWork Order Activity
WO_OTHWO_ACTtswcs430.cmbaWork Order Activity
