Objects

The Objects (dmsys1511m000) session contains the following data fields:

Object ID	Displays the object ID, which acts as an identifier.
Object Description	Displays the object description.
Main Table	Displays the table name that is based on the object data.
System Defined Object	Displays an object that indicates whether the object is a system-defined object or not. No user can modify the details of a system-defined object, except for the description.

The appropriate menu in the Objects (dmsys1511m000) session contains the following options:

Families Owned by a Type	Displays the families owned by the specific object type in the Object Families (dmsys1512m000) session.
Families Object is Member In	Displays the Families list of which the specified object is a member in all the displayed families, as shown in the Object Families - Linkage Types Lines (Family Members) (dmsys0513m000) session.
Object Masks	Displays the Object Masks option on the appropriate menu. Click Object Masks to start the Object Masks (dmcom0522m000) session. Object masks enable you to generate unique object identifiers automatically, and ensure that these identifiers have a constant format.
Statuses by Object Type	Displays the Statuses by Object Type option on the appropriate menu. Click Statuses by Object Type to start the Object Statuses by Object (dmsys0520m000) session to create a new status code for an object.
Reason Codes	Displays the Reason Codes option on the appropriate menu. Click Reason Codes to start the Reasons (dmcom0150m000) session. Reason codes are system administrator-defined lists of codes and descriptions that provide a reason for the change.
Families List	Displays the Families List option on the appropriate menu. Click Families List to start the Object Families by Member (dmsys9512m000) session. The families’ list is the list of all the families.
Actions	Displays the Actions command on the appropriate menu. Click Actions to start the Actions (dmcom0530m000) session. Actions are commands that determine operations that can be performed on an object. For example, if Change Header (CH) is an object, CH's actions are Cancel, Created, Completed, and Under Review.
Related Objects	Displays the Related Objects option on the appropriate menu. Click Related Objects to start the Related Objects (dmsys1113m000) session. Related objects are those objects that have a relation with one another.

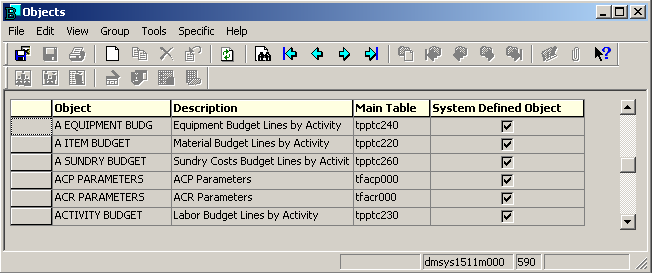

The following figure shows the Objects (dmsys1511m000) session:

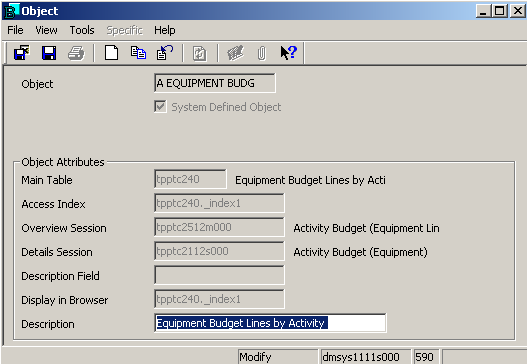

The Objects (dmsys1111s000) details session contains the following data fields:

Object ID	Displays a field that is used to enter the object identifier.
Main Table	Displays the table name where you can find the object data. This field displays the main table on which this object is defined.
Access Index	Displays the index, which is used to access the object.
Overview Session	Displays the main session identifier for the object.
Details Session	Displays the details session identifier for the object.
Description Field	Displays the description of the object from the main table. This field also displays the field that is used to provide the description of the object instance if the instances are listed in the generic sessions, For example, dmcom9110m000 and dmcom8110m000, or the object browser. For example: If the object is LIBR – Library, the description field will be the dmsys040m000 description. The field dmsys040m000 description has the description of the library instance.
Display in Browser	Displays the object identifier for the object browser. Displays the field on which the ODM object browser, for example, the Browse option from documents, must fetch the properties for the object.
Object Description	Displays the object description. This field displays the description of the object, which by default will be the description of the main table on which this object is defined.
Default Icon	Displays an Icon that must be displayed in the browser for the defined object. If the main table of the object has a field that can hold an image, you can specify this field here. If the object browser appears for this object, the system picks up the image that is defined for this field.
System Defined Object	Displays a check box, which you can select to ensure that the created object cannot be deleted or modified.

The following table lists the data present in the Objects (dmsys1511m000) session:

Object	Description	Main Table	System Defined Object
A EQUIPMENT BUDG	Equipment Budget Lines by Activity	tpptc240	Yes
A ITEM BUDGET	Material Budget Lines by Activity	tpptc220	Yes
A SUNDRY BUDGET	Sundry Costs Budget Lines by Activity	tpptc260	Yes
ACTIVITY BUDGET	Labor Budget Lines by Activity	tpptc230	Yes
ACT_BUD_SUBC	Subcontracting Budget Lines by Activity	tpptc250	Yes
ADDRESS	Addresses	tccom130	Yes
ADJ_ORDERS	Adjustment Order	whinh520	Yes
ADJ_ORDER_LINES	Adjustment Order Line	whinh521	Yes
ASSEMB_KIT	Assembly Kit	whwmd450	Yes
ASSEMB_ORDERS	Assembly Orders	tiasc200	Yes
ASSET DOCUMENTS	Asset Document	tffam100	Yes
ASSIGNMENT	Assignment	bpmdm030	Yes
ASSY_HRS	Assembly Order Data	bptmm160	Yes
ATTRS	Attributes	dmcom200	Yes
BLOCKING_REASONS	Blocking Reasons	tsmdm101	Yes
BOM	Bill of Material	tibom010	Yes
BUY_FROM_BP	Buy-from Business Partners	tccom120	Yes
CALLS	Calls	tsclm100	Yes
CALL_OVERVIEW	Calls	tsclm100	Yes
CARRIER	Carriers	tcmcs080	Yes
CH	Changes	dmchm011	Yes
CH-REVW	Reviewers List	dmchm022	Yes
CHANGE COMMITTEE	Change Committee	dmcom027	Yes
CHARACTERISTICS	Characteristics	qmptc001	Yes
CHECKLIST	Checklists	tsmdm040	Yes
CHK AUTHORIZ	Check Master	tfcmg100	Yes
CHK-BY-CHKLISTS	Checks by Checklist	tsmdm045	Yes
CH_AFF_OBJ	Change Affected Objects	dmchm030	Yes
CLIENT_VER	Maintain Latest ODM Client Version	dmdoc000	Yes
CLUSTERS	Cluster	tsbsc100	Yes
CLUST_CONFIG	Cluster Configuration	tsbsc110	Yes
CO	Change Order	dmchm050	Yes
CONTRACT_CONF	Configuration Lines	tsctm110	Yes
CONT_CONF	Configuration Lines	tsctm110	Yes
CONT_QUOTATION	Contract Quotations	tsctm200	Yes
CONT_TEMPLATE	Contract Templates	tsctm050	Yes
COUNTRY	Countries	tcmcs010	Yes
CP_VER	Change Proposal	dmchm020	Yes
CR	Change Request	dmchm001	Yes
CYCLE_ORDER	Cycle Counting Order	whinh500	Yes
CYCLE_ORDER_LINE	Cycle Counting Order Line	whinh501	Yes
DOC-REVW	Reviewer's List	dmdoc230	Yes
DOCS	Document	dmdoc110	Yes
DOCTYPE	Document Types	dmdoc210	Yes
DOC_REV	Document Revision	dmdoc120	Yes
E EQUIPMENT BUDG	Equipment Budget Lines by Element	tpptc140	Yes
E ITEM BUDGET	Material Budget Lines by Element	tpptc120	Yes
E SUBC BUDGET	Subcontracting Budget Lines by Element	tpptc150	Yes
E SUNDRY BUDGET	Sundry Costs Budget Lines by Element	tpptc160	Yes
EBOM	Engineering BOM	tiedm110	Yes
EFFECTIVITY_UNIT	Effectivity Unit	tcuef002	Yes
EITEM	Engineering Item	tiedm010	Yes
EITEM_ITEM_REL	Engineering Item - Item Relationship	tiedm101	Yes
EITEM_REV	Engineering Item Revision	tiedm100	Yes
ELEMENT BUDGET	Labor Budget Lines	tpptc130	Yes
EMP	Employee - People	bpmdm001	Yes
EMPLOYEES	Employees - General	tccom001	Yes
EQUIP COMMIT	Commitments (Equipment)	tpppc250	Yes
EQUIP COST	Equipment Costs	tpppc251	Yes
EQUIP HIST	Equipment Cost History	tpppc255	Yes
EST_AND_ACT_MAT	Estimated and Actual Material Costs	ticst001	Yes
EXCHANGE_RATE	Exchange Rate Types	tcmcs040	Yes
EXP_SHIPMENTS	Expected Shipments	whinh301	Yes
FACTOR AGREEMENT	Pay-by Business Partners by Factor	tfacr016	Yes
FCO_LINES	Field Change Order Lines	tssoc510	Yes
FIELD_CHANGE_O	Field Change Order Headers	tssoc500	Yes
FILE	File	dmdoc430	Yes
FILENAME	File Names	dmdoc420	Yes
FLDR	Folder	dmfmg022	Yes
FREIGHT_ITEM	Item - Freight Management	fmfmd100	Yes
FREIGHT_ORD_LINE	Freight Order Lines	fmfoc201	Yes
GENERAL_PROJECT	Projects	tcmcs052	Yes
GENERIC_BOM	Generic BOMs	tipcf310	Yes
GEN_ITEM	General Item Data	tcibd001	Yes
HANDL_UNITS	Handling Units	whwmd530	Yes
HARD COPY	Hard Copy Revision	dmdoc300	Yes
HISTORY_SO	History Service Orders	tssoc850	Yes
HIST_ASSY_HRS	History Assembly Order Data	bptmm260	Yes
HIST_PCS PRJ_HRS	History PCS Project Data	bptmm270	Yes
HIST_PROD_HRS	History Production Order Data	bptmm220	Yes
HIST_PROJ_HRS	History Project and General Hours/Expenses	bptmm211	Yes
HIST_SERV_HRS	History Service Order Data	bptmm230	Yes
HIST_SOA	History Service Order Activities	tssoc855	Yes
HIST_SOQ	Service Order Quotation History	tssoc810	Yes
HIST_SO_LAB	History Service Order Labor Costs	tssoc861	Yes
HIST_SO_MAT	History Service Order Material Costs	tssoc860	Yes
HIST_SO_OTH	History Service Order Other Costs	tssoc862	Yes
HIST_WORK_HRS	History Work Order Data	bptmm240	Yes
INB_ORD_LINES	Inbound Order Lines	whinh210	Yes
INSPECTIONS-TEST	Inspections by Origin	qmptc120	Yes
INSP_ORDERS	Inspection Orders	qmptc100	Yes
INSP_ORDER_LINES	Inspection Order Lines	qmptc101	Yes
INSP_TEMPLATE	Measurements by Reference Activity	tsacm360	Yes
INSTRUCTIONS	Operation Step-Instructions	tirou112	Yes
INSURANCE POLICY	Insured Fixed Assets	tffam161	Yes
INVOICE_FROM_BP	Invoice-from Business Partners	tccom122	Yes
INV_COMMIT	Inventory Commitments	whinp200	Yes
ITEM BREAKDOWN	Item Breakdowns	tscfg110	Yes
ITEM-EFFECT	Date Effective Item Data	tcibd010	Yes
ITEM-MFG	Item Manufacturer Information	tdipu030	Yes
ITEM_CODE_SYSTEM	Item Code Systems	tcibd006	Yes
ITEM_PRODUCTION	Item Production Data	tiipd001	Yes
ITEM_PURCHASE	Item Purchase Data	tdipu001	Yes
ITEM_ROUTING	Routing Codes by Item	tirou101	Yes
ITEM_SALES	Item Sales Data	tdisa001	Yes
JOB_CONF	Configuration Lines	tsctm110	Yes
JOURNAL VOUCHERS	Non Finalized Transactions	tfgld102	Yes
JV FINALIZED	Finalized Transactions	tfgld106	Yes
LABOR COST	Labor Costs	tpppc231	Yes
LABOR HIST	Labor Cost History	tpppc235	Yes
LABOR-SURCH	Labor Type - Surcharges	tcppl031	Yes
LABOR_RATES	Labor Rate Code - Rates	tcppl091	Yes
LAB_RATE_BP_PROJ	Labor Rates by Business Partner and Project	tcppl092	Yes
LATE_PAYMENT_SUR	Late Payment Surcharges	tcmcs011	Yes
LIBR	Libraries	dmsys040	Yes
LINK_ATTRS	Link Attribute Setup	dmcom210	Yes
LINK_ATTRS_PROP	Link Attributes and Properties	dmcom220	Yes
LOADS	Loads	whinh440	Yes
MAST_ROUTING	Master Routings	tsacm101	Yes
MAST_R_OPTIONS	Master Routing Options	tsacm101	Yes
MATERIAL COMMIT	Commitments (Material)	tpppc210	Yes
MATERIAL COST	Material Costs	tpppc211	Yes
MATERIAL HIST	Material Cost History	tpppc215	Yes
MBC	MBC	tiedm310	Yes
MEASURE_TYPES	Measurements	tsmdm065	Yes
MICROROUTING	Order Instructions	tisfc041	Yes
MSC_COV_HIST	History - Maintenance Sales Order Coverage Lines	tsmsc820	Yes
MSC_COV_LINES	Maintenance Sales Order Coverage Lines	tsmsc120	Yes
MSC_HISTORY	History - Maintenance Sales Order	tsmsc800	Yes
MSC_LINES	Maintenance Sales Order Item Lines	tsmsc110	Yes
MSC_LINE_HIST	History - Maintenance Sales Order Item Lines	tsmsc810	Yes
MSC_ORDERS	Maintenance Sales Order	tsmsc100	Yes
OBJECT_FAMILY	Object Families	dmsys112	Yes
OBJECT_TYPE	Objects	dmsys111	Yes
ODM_PARAM	Common ODM Parameters	dmsys000	Yes
OHRA	Time Data	bptmm100	Yes
OPERATIONSTEPTOO	Operation/Operation Step – Tools	tirou110	Yes
OPRATIONSTEP	Operations Step	tirou105	Yes
ORDER_TYPE	Sales Order Types	tdsls094	Yes
OUT_ADVICE	Outbound Advice	whinh225	Yes
OUT_ORD_LINES	Outbound Order Lines	whinh220	Yes
OW-ATTRS	User Parameters For OpenWorldX	dmdoc001	Yes
PATTERN	Patterns	tdipu020	Yes
PAY_TO_BP	Pay-to Business Partners	tccom124	Yes
PCS PROJ_HRS	PCS Project Data	bptmm170	Yes
PHYS-BREAKDOWN	Physical Breakdowns	tscfg210	Yes
PLANACT_LAB	Labor Requirements by Planned Activity	tsspc211	Yes
PLANACT_MAT	Material Requirements by Planned Activity	tsspc210	Yes
PLANACT_OTH	Other Requirements by Planned Activity	tsspc212	Yes
PLANNED_ACTIVITI	Planned Activities	tsspc200	Yes
PLAN_ORD_LINE	Planned Order Line	cprrp110	Yes
PLN PRP PO_EQUIP	Planned PRP Purchase Orders (Equipment)	tppss611	Yes
PLN PRP PO_MAT	Planned PRP Purchase Orders (Material)	tppss610	Yes
PLN PRP PO_SUB	Planned PRP Purchase Orders (Subcontracting)	tppss612	Yes
PLN PRP WH_MAT	Planned PRP Warehouse Orders	tppss615	Yes
PRED_ACT	Maintenance Prediction	tsspc125	Yes
PRICE	Pricing Books	tdpcg031	Yes
PRJ EQUIPMENT	Project Equipment	tppdm625	Yes
PRJ LABOR	Project Labor	tppdm615	Yes
PRJ SUBCONTRACT	Project Subcontracting	tppdm635	Yes
PRJ SUNDRY COSTS	Project Sundry Cost Codes	tppdm640	Yes
PROC CARD STAT	Procurement Card Statement - Header	tfacp120	Yes
PROCESS	Process Variables	tirou005	Yes
PRODUCTION_ORDER	Production Order	tisfc001	Yes
PROD_HRS	Production Order Data	bptmm120	Yes
PROD_ORD_ADV	Production Order Advice	whina300	Yes
PROJECT	Project Contract	tppdm601	Yes
PROJECT ITEM	Item Project Data	tppdm005	Yes
PROJECTS	Project	tppdm600	Yes
PROJECT_ACTIVITI	Activities	tppss200	Yes
PROJECT_PLAN	Project Plans	tppss010	Yes
PROJ_HRS	Project and General Hours/Expenses	bptmm111	Yes
PUR REQUISITION	Purchase Requisition	tfacp230	Yes
PURCHASE INVOICE	Open Items (Purchase Invoices & Payments)	tfacp200	Yes
PURCHASE_TYPE	Purchase Types	tcmcs201	Yes
PUR_CONTRACT	Purchase Contracts	tdpur300	Yes
PUR_CONTRACT_LN	Purchase Contract Lines	tdpur301	Yes
PUR_CONTR_LN_LD	Purchase Contract Line Logistic Data	tdpur302	Yes
PUR_OFF	Purchase Offices	tdpur012	Yes
PUR_ORDER_TYPE	Purchase Order Types	tdpur094	Yes
PUR_ORDR	Purchase Orders	tdpur400	Yes
PUR_ORD_ADV	Purchase Order Advice	whina310	Yes
PUR_ORD_LINE	Purchase orders lines	tdpur401	Yes
PUR_RELEASE	Purchase Release	tdpur320	Yes
PUR_REQ	Purchase Requisition	tdpur200	Yes
PUR_REQ_LINES	Purchase Requisition Lines	tdpur201	Yes
PUR_RFQ	RFQ Headers	tdpur100	Yes
PUR_RFQ_LINE	RFQ Lines	tdpur101	Yes
PUR_SCHEDULES	Purchase Schedules	tdpur310	Yes
PUR_SCHEDULE_LN	Purchase Schedule Lines	tdpur311	Yes
QM-ALGORITHMS	Algorithms	qmptc021	Yes
QM-IP-LINES	Order-specific Inspection Data (Lines)	qmptc051	Yes
QUALITY-ID	Quality IDs	qmptc010	Yes
QUERY	Query	dmqry001	Yes
QUERY_RUN	Previous Runs	dmqry003	Yes
RATES	Labor Rates	tcppl090	Yes
REASON	Reasons	tcmcs005	Yes
REC_PUR_INVOICE	Received Purchase Invoices	tfacp100	Yes
REF_ACT	Reference Activities	tsacm101	Yes
REF_ACT_REQS	Resource Requirements by Reference Activity	tsacm220	Yes
REG_INSPECTIONS	Inspection Registries	tssoc250	Yes
RELATED_OBJECTS	Related Objects	dmsys113	Yes
REMIT AGREEMENT	Remittance Agreements	tfacp302	Yes
RFQ	RFQ Headers	tdpur100	Yes
RFQ_LINES	RFQ Lines	tdpur101	Yes
ROLES	Roles	tcppl060	Yes
ROU-INSTR	Instructions	tirou006	Yes
ROU-TASKS	Task	tirou003	Yes
ROUT	Machine	tirou002	Yes
ROUTING_OP	Routing Operation	tirou102	Yes
RPT	Reports Repository	dmcom024	Yes
RULE	Rules	dmcom270	Yes
SALES_CONTRACT	Sales Contracts	tdsls300	Yes
SALES_CONTR_LINE	Sales Contract Lines	tdsls301	Yes
SALES_OFFICE	Sales Offices	tdsls012	Yes
SALES_OL_DELIVER	Sales Order Lines	tdsls401	Yes
SALES_ORDER	Sales Orders	tdsls400	Yes
SALES_ORDER_LINE	Sales Order Lines	tdsls401	Yes
SALES_QUOT	Sales Quotations	tdsls100	Yes
SALES_QUOT_LINES	Sales Quotation Lines	tdsls101	Yes
SALES_RELEASE	Sales Releases	tdsls312	Yes
SALES_SCHEDULE	Sales Schedules	tdsls311	Yes
SALES_SCHED_LINE	Sales Schedule Lines	tdsls307	Yes
SALES_TYPE	Sales Types	tcmcs202	Yes
SAMPLE_TEST_DATA	Test Data	qmptc115	Yes
SEGMENT_SET	Segment Sets	tdipu013	Yes
SEQ_SHIPPING_INF	Sequence Shipping Information	tdsls317	Yes
SERVICE ORDER AC	Service Order Activity	tssoc210	Yes
SERVICE ORDERS	Service Orders	tssoc200	Yes
SERVICE_AREAS	Service Areas	tsmdm105	Yes
SERVICE_CONTRACT	Service Contracts	tsctm300	Yes
SERVICE_EMPLOYEE	Service Employees	tsmdm140	Yes
SERVICE_ITEM	Items - Service	tsmdm200	Yes
SERV_DEPARTMENTS	Service Departments	tsmdm100	Yes
SERV_EMP_SKILLS	Skills by Employee	tsmdm135	Yes
SERV_HRS	Service Order Data	bptmm130	Yes
SERV_KIT_TYPE	Service Kit Types	tsmdm115	Yes
SERV_OBJECTS	Objects - Service	tscfg200	Yes
SERV_ORD_QUOTAT	Service Order Quotations	tssoc100	Yes
SFC-MICRO	SFC – Micro Routing Instructions Enabler	tisfc042	Yes
SHIPMENTS	Shipments	whinh430	Yes
SHIPMENT_LINE_FM	Shipment Lines	fmlbd350	Yes
SHIPTO_BY_SOLDBP	Ship-to by Sold-to Business Partner	tccom117	Yes
SHIP_FROM_BP	Ship-from Business Partners	tccom121	Yes
SHIP_LINES	Shipment Lines	whinh431	Yes
SHIP_NOTICE	Shipment Notices	whinh300	Yes
SHIP_TO_BP	Ship-to Business Partners	tccom111	Yes
SLS_ORDER	Sales orders	tdsls400	Yes
SLS_ORDER_LINE	Sales Order Lines	tdsls401	Yes
SOLD-TO-BP	Item Sold-to Business Partner Information	tdisa010	Yes
SOLD_TO_BP	Sold-to Business Partners	tccom110	Yes
SO_LABOR_A	Service Order Labor Costs	tssoc230	Yes
SO_LABOR_E	Service Order Labor Costs	tssoc230	Yes
SO_MATERIALS_A	Service Order Material Costs	tssoc220	Yes
SO_MATERIALS_E	Service Order Material Costs	tssoc220	Yes
SO_OTHER_A	Service Order Other Costs	tssoc240	Yes
SO_OTHER_E	Service Order Other Costs	tssoc240	Yes
SPEC_INSP_ORDERS	Order-specific Inspections	qmptc049	Yes
STANDING ORDERS	Standing Orders	tfcmg104	Yes
STD EQUIPMENT	Equipment	tppdm025	Yes
STD LABOR	Labor	tppdm015	Yes
STD SUBCONTRACT	Subcontracting	tppdm035	Yes
STD SUNDRY COSTS	Sundry Costs	tppdm040	Yes
STORAGE_INSP_ORD	Inspection Results by Origin (Storage Inspection)	qmptc220	Yes
STOR_LIST	Storage List	whinh215	Yes
SUBCONT COMMIT	Commitments (Subcontracting)	tpppc270	Yes
SUBCONT COST	Subcontracting Costs	tpppc271	Yes
SUBCONT HIST	Subcontracting Cost History	tpppc275	Yes
SUBCONT HRS	Subcontracting Hours	tpppc232	Yes
SUBCONTRACT_MANA	Subcontract Agreement Header	tssbm100	Yes
SUNDRY COMMIT	Commitments (Sundry Cost)	tpppc290	Yes
SUNDRY COST	Sundry Costs	tpppc291	Yes
SUNDRY HIST	Sundry Cost History	tpppc295	Yes
SYSTABLE	System Tables	dmsys201	Yes
TASK	Change Management Task	dmchm040	Yes
TASKS	Tasks	tsmdm015	Yes
TERMS_OF_DELIVER	Terms of Delivery	tcmcs041	Yes
TERMS_OF_PAYMENT	Terms of Payment	tcmcs013	Yes
TG	Task Group	dmchm041	Yes
TRD NT PAYABLE	Trade Notes Payable	tfcmg125	Yes
TRD NT RECEVABLE	Trade Notes Receivable	tfcmg425	Yes
VAULT SERVER	Area	dmdoc520	Yes
WAREHOUSE	Warehouses	tcmcs003	Yes
WARRANTY	Warranties	tsctm020	Yes
WH_ITEM	Item Warehousing Data	whwmd400	Yes
WH_ORDERS	Warehousing Order (Issue, Receipt, Transfer)	whinh200	Yes
WH_ORD_ASSEMB	Warehousing Order (Assembly)	whinh200	Yes
WH_ORD_TYPES	Warehousing Order Type	whinh010	Yes
WH_PROC	Warehousing Procedure	whinh005	Yes
WOA_HIST	History Work Order Activities	tswcs821	Yes
WOMAT_HIST	History Work Order Material Resources	tswcs841	Yes
WOM_HIST	History Work Order Measurements	tswcs822	Yes
WOOTH_HIST	History Work Order Other Resources	tswcs843	Yes
WORKORDER	Work Orders	tswcs200	Yes
WORK_CENT	Work Center	tirou001	Yes
WORK_HRS	Work Order Data	bptmm140	Yes
WO_ACT	Work Order Activities	tswcs210	Yes
WO_HIST	History Work Orders	tswcs820	Yes
WO_MAT	Work Order Material Resources	tswcs410	Yes
WO_MEASUREMENTS	Work Order Measurements	tswcs220	Yes
WO_OTH	Work Order Other Resources	tswcs430	Yes
