Field Details
| Field name | Data type | Length | Mandatory | Comments |
|---|---|---|---|---|
| APPLICATION_ID | Int | 15 | Yes | |
| RESPONSIBILITY_ID | Int | 15 | Yes | |
| ACTION_ID | Int | 15 | Yes | Excluded Function_ID or Menu_ID for that particular Responsibility_ID and Application_ID |
| RULE_TYPE | String | 1 | Yes |
|
| LAST_UPDATE_DATE | DateTime | No | yyyy-mm-dd hh:mi:ss:mmmm | |
| LAST_UPDATED_BY | Int | 15 | No | |
| LAST_UPDATE_LOGIN | Int | 15 | No | |
| CREATION_DATE | DateTime | No | yyyy-mm-dd hh:mi:ss:mmmm | |
| CREATED_BY | Int | 15 | No | |
| SECURITY_GROUP_ID | Decimal | No |
|
Example:

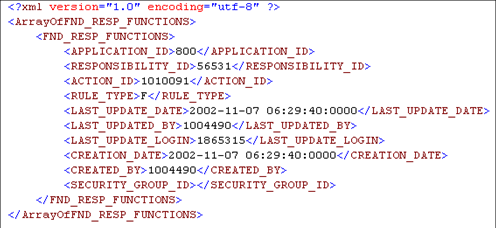

The example below shows how to generate the APPROVA_AI_ORCL_FND_RESP_FUNCTIONS.xml file.
