Field Details
| Field name | Data type | Length | Mandatory | Comments |
|---|---|---|---|---|
| FUNCTION_ID | Decimal | Yes |
|
|
| FUNCTION_NAME | String | 480 | Yes | |
| APPLICATION_ID | Decimal | No |
|
|
| FORM_ID | Decimal | No |
|
|
| PARAMETERS | String | 2000 | No | |
| CREATION_DATE | DateTime | No | yyyy-mm-dd hh:mi:ss:mmmm | |
| CREATED_BY | Int | 15 | No | |
| LAST_UPDATE_DATE | DateTime | No | yyyy-mm-dd hh:mi:ss:mmmm | |
| LAST_UPDATED_BY | Int | 15 | No | |
| LAST_UPDATE_LOGIN | Int | 15 | No | |
| TYPE | String | 30 | No | |
| WEB_HOST_NAME | String | 80 | No | |
| WEB_AGENT_NAME | String | 80 | No | |
| WEB_HTML_CALL | String | 240 | No | |
| WEB_ENCRYPT_PARAMETERS | String | 1 | No | |
| WEB_SECURED | String | 1 | No | |
| WEB_ICON | String | 30 | No | |
| OBJECT_ID | Int | 15 | No | |
| REGION_APPLICATION_ID | Int | 15 | No | |
| REGION_CODE | String | 30 | No | |
| MAINTENANCE_MODE_SUPPORT | String | 8 | No | |
| CONTEXT_DEPENDENCE | String | 8 | No | |
| JRAD_REF_PATH | String | 1000 | No | |
| USER_FUNCTION_NAME | String | 80 | Yes | |
| DESCRIPTION | String | 240 | No | |
| LANGUAGE | String | 4 | Yes | |
| FORM_NAME | String | 30 | No | |
| USER_FORM_NAME | String | 80 | No | |
| APPLICATION_NAME | String | 240 | No |
Note: The FUNCTION_ID must be unique.
Example:

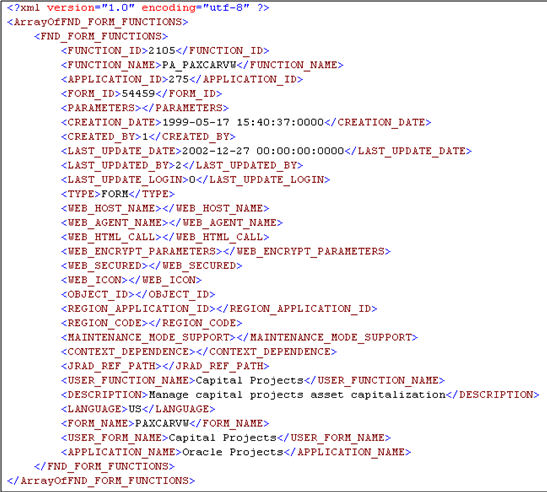

The example below shows how to generate the APPROVA_AI_ORCL_FND_FORM_FUNCTIONS.xml file.
