Report XML template (FsWebReportTemplate.xml)
Optiva provides a template for the XML job file, named FsWebReportTemplate.xml. The report template is a starting point for report information and can be configured for the requirements of different reports. A report XML file defines report file properties, object and parameter data. Itidentifies the schemas that define the data types of all the fields in this file. There is a schema for the fields in the report file itself and a separate schema for each object in the file. The report XML file also includes the object data and is used during run-time to produce the report.
The report XML file is also known as a job file because it is used at run-time to run the report.

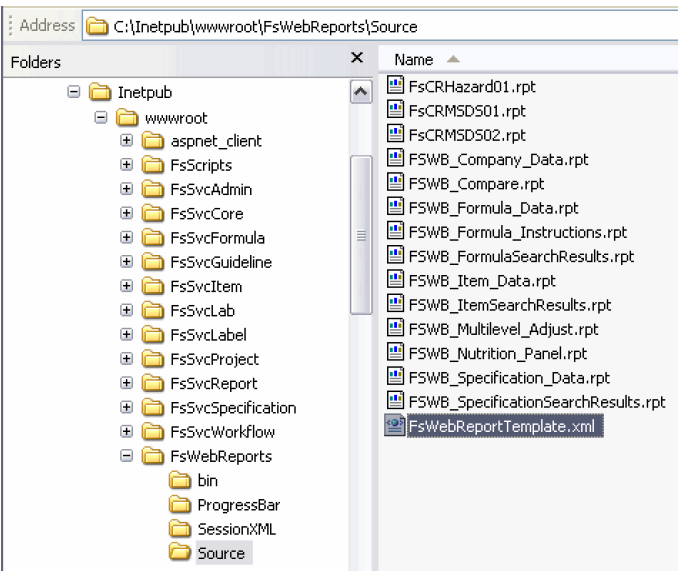

An empty sample report XML template (FsWebReportTemplate.xml) is installed into Inetpub\wwwroot\FsWebReports\Source.
Use this file as a starting point for each report. Workflow fills in the input parameters and the object data to create the run-time job file.

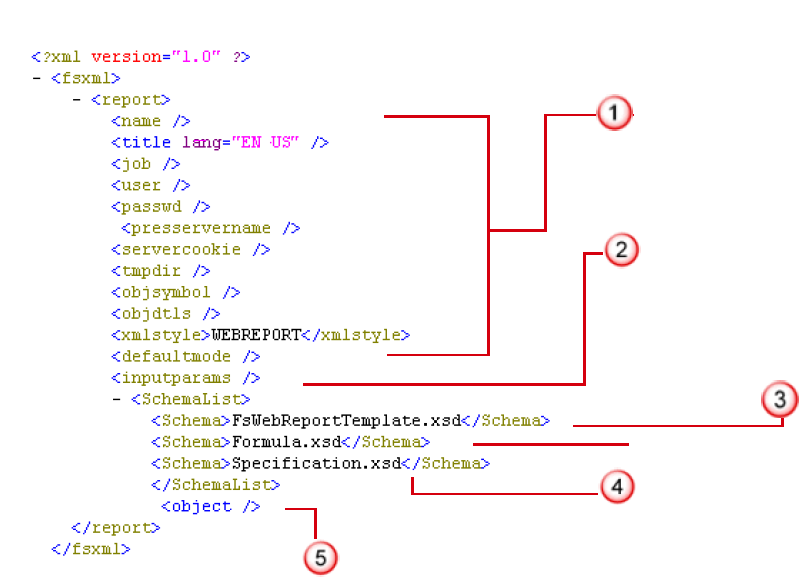

| Marker | Description |
|---|---|
| 1 | Place holder for report properties. This is specified in the report schema.
The |
| 2 | Place holder for report properties. This is specified in the report schema. |
| 3 | Schema for the fields in this job file. |
| 4 |
Schema for each object in this job file. The XSD files should be listed with an absolute path or be in FsWebReports or FsWebReports\Source. |
| 5 |
Placeholder for Optiva XML object data. XML files for objects are added here by Web Reports. |
