Quenching example

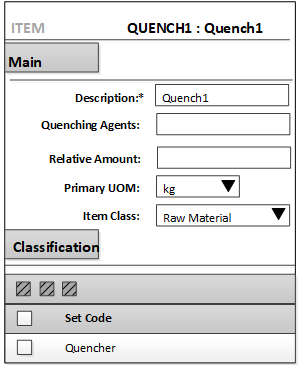

- Create the QUENCH1 and QUENCH2 items. Then, assign the Quencher set code to both items.

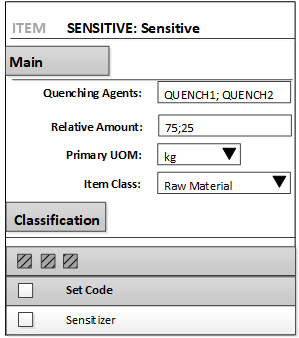

- Create the SENSITIVE item.
- Specify item QUENCH1 and item QUENCH2 as the Quenching Agents.
- Specify the relative amount of 75;25.
- Select Sensitizer for the set code.
- Create a formula, FQ12\0001 and add these ingredients:
SENSITIVE Quantity = 100.0 KG
QUENCH1 Quantity = 75.0 KG

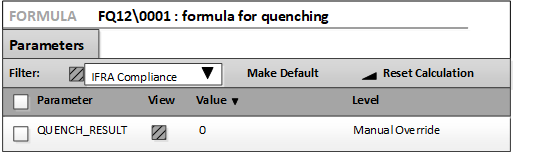

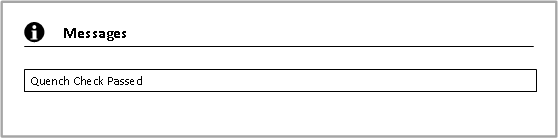

- Click Quencher Calc. A successful message is displayed and the QUENCH_RESULT parameter value is 0 (Pass).

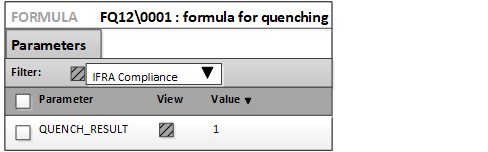

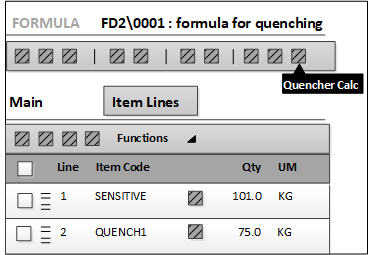

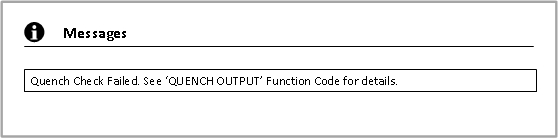

- Increase the quantity of the SENSITIVE ingredient to 101. Click Save. Then, click Quencher Calc. A failure message is displayed and the QUENCH_RESULT parameter value is 1 (Fail).
