Configuring derived fields

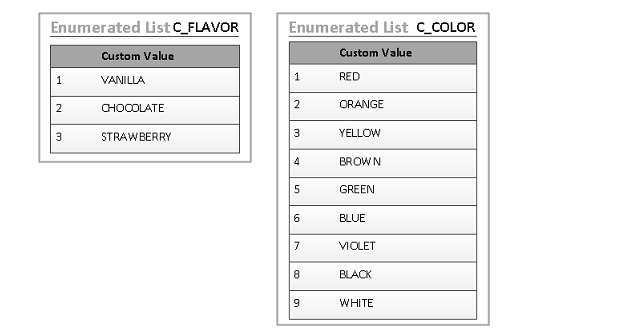

Configure the enumerated lists. For this example, the enumerated lists are C_FLAVOR and C_COLOR.

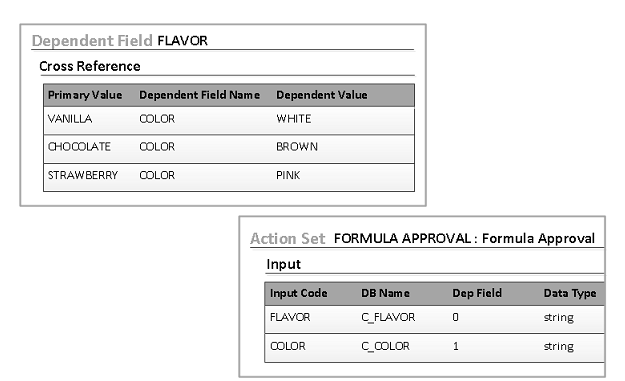

Associate the dependent values in the Dependent Field Cross Reference form. For example, COLOR depends on FLAVOR. Specify the primary and dependent values manually in this form.

Users can select the primary value for the FLAVOR extension field from an enumerated list or lookup. The system administrator uses the Primary and Dependent Field names (FLAVOR and COLOR) as input codes in the action set. The dependent extension field derives its value from the primary value.

To delete a cross-reference, remove a row. You cannot delete the table itself.

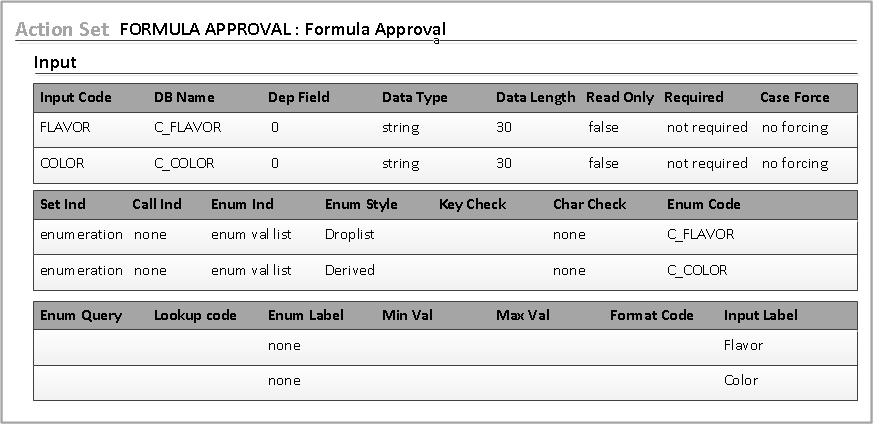

Define the dependent fields as input codes in the action set. The primary field (FLAVOR) must be a single-value with an Enum Style of Droplist, an Enum query, or a Lookup. The derived field (COLOR) must have an Enum Style of Derived.

Field Column Entry
Primary Dep Field

Enum Style

00, the default

2 - Droplist (Enum Ind = enum query, lookup code or enum val list)

Dependent (derived) Dep Field

Enum Style

5 - Derived
