Editing dashlet styles

Dashlets have style options that become available when you select one or more dashlets.

Caution:
Color settings on a dashlet override the theme settings.
Note: In Birst Online Help, select Reports > Getting Started with Visualizer > Visualizer reference > Color Reference to see how to match these colors with Visualizer color palettes.
  1. Select a dashlet. To select multiple dashlets, hold the Ctrl (PC) or Command (Mac) key and select multiple dashlets. The Edit Menu bar appears.
  2. Use Background Color to change the background color.
    Note: To select a custom color, click the current color icon at the bottom of the screen.


  3. Use Border Color to change the border color.
    Note:  To select a custom color, click the current color icon at the bottom of the screen.


  4. Use Border Thickness to set the thickness of the dashlet's border.


  5. Use the Border Radius to change the border corner style.


  6. Use Padding to set the space between the image and the border.


  7. Use Shadow to set the drop shadow outside the dashlet.


  8. To modify text in the dashlet, select either Style Dashlet Title or Style Dashlet Body.


  9. Use Font Family to set the font family.

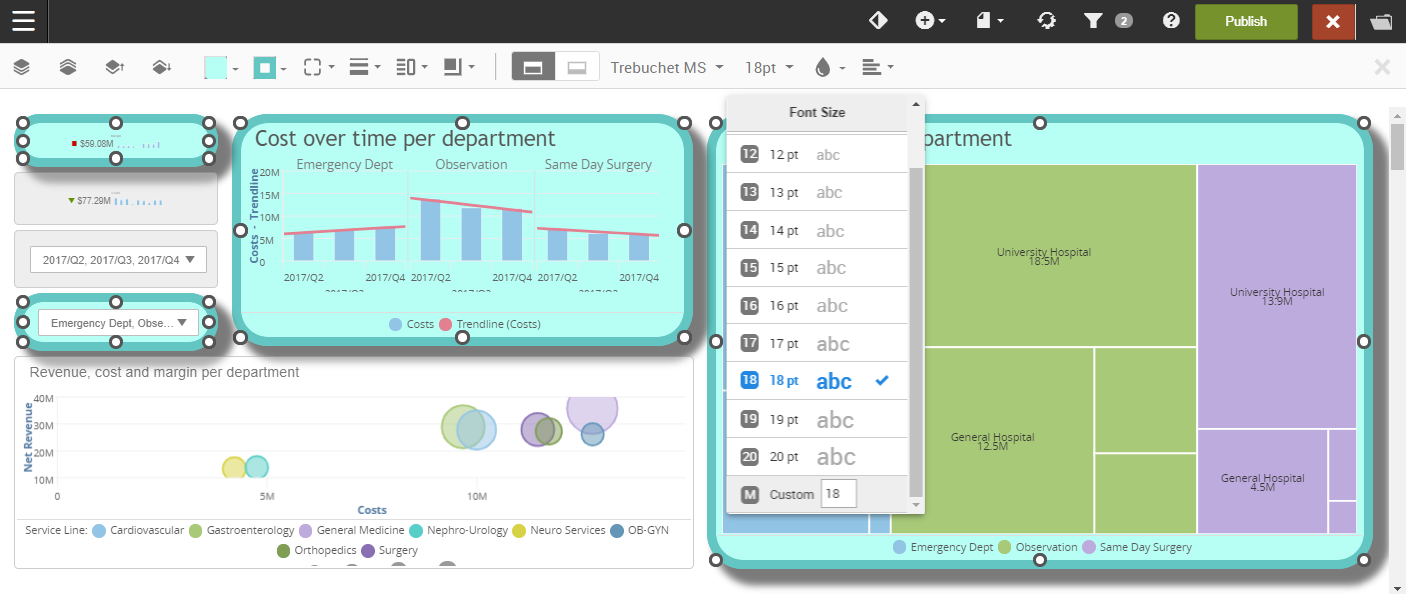

  10. Use Font Size to set the font size.


  11. Use Font Color to set the font color.
    Note: To select a custom color, click the current color icon at the bottom of the screen


    .

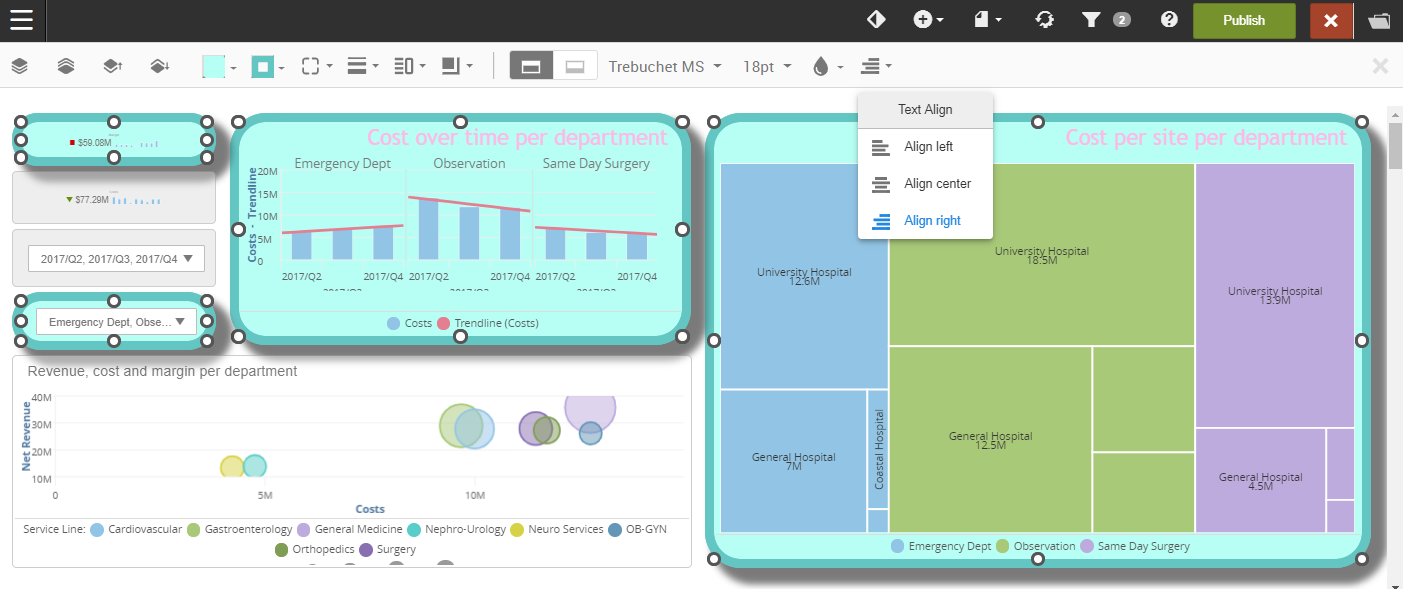

  12. Use Text Alignment to set the text alignment.


  13. Publish to save the changes to the dashlet.
