Dashlets style options

The dashlet style options become available when you select one or more dashlets. To select multiple dashlets, hold the Ctrl (PC) or Command (Mac) key and select the dashlets.

Caution:
Color settings on a dashlet override the theme settings.
Note: In Birst Online Help, select Reports > Getting Started with Visualizer > Visualizer reference > Color Reference to see how to match these colors with Visualizer color palettes.

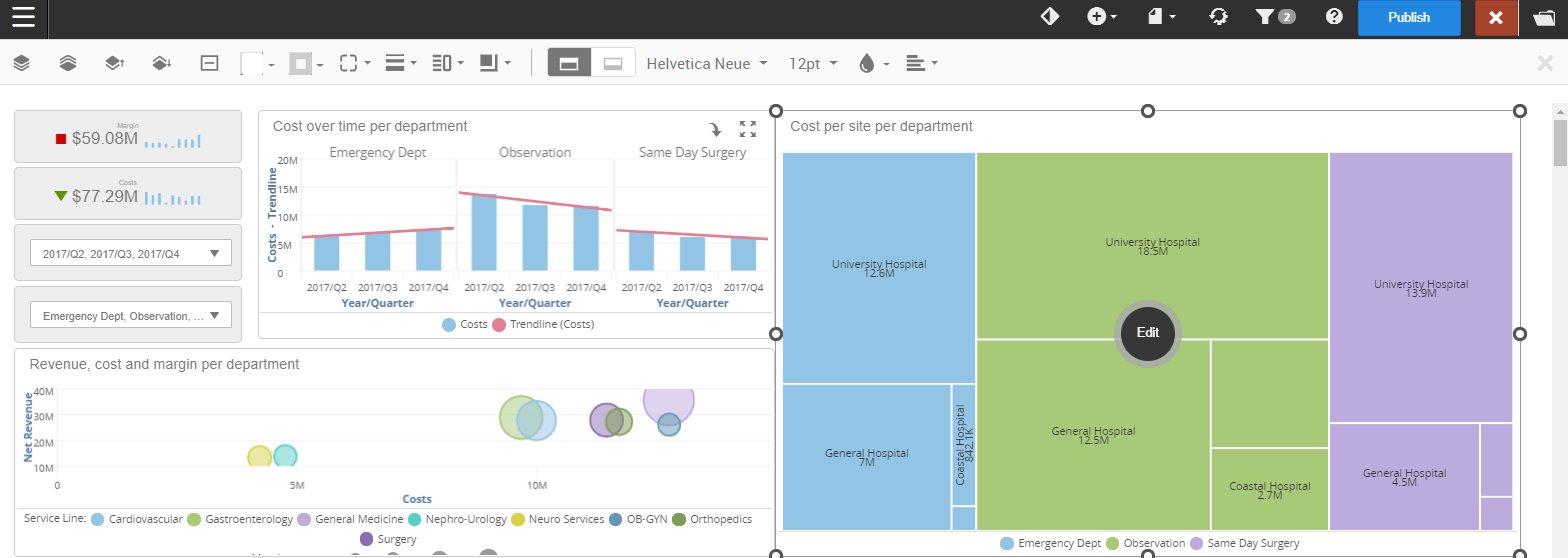

  1. In Edit mode, select a dashlet. The Edit Toolbar is displayed. Dashets have access to all the options in the Edit Toolbar and so on.

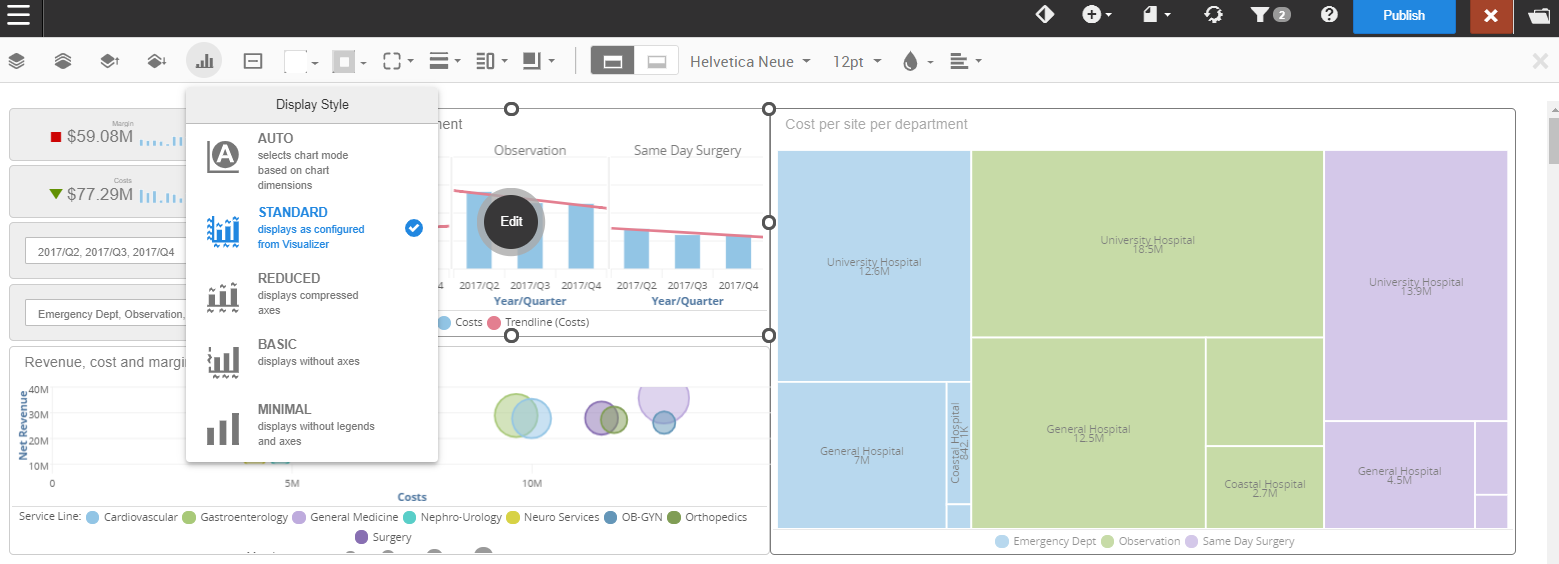

  2. Use Display Style to change the dashlet's style.
    Note: This option is only available when a single dashlet is selected.

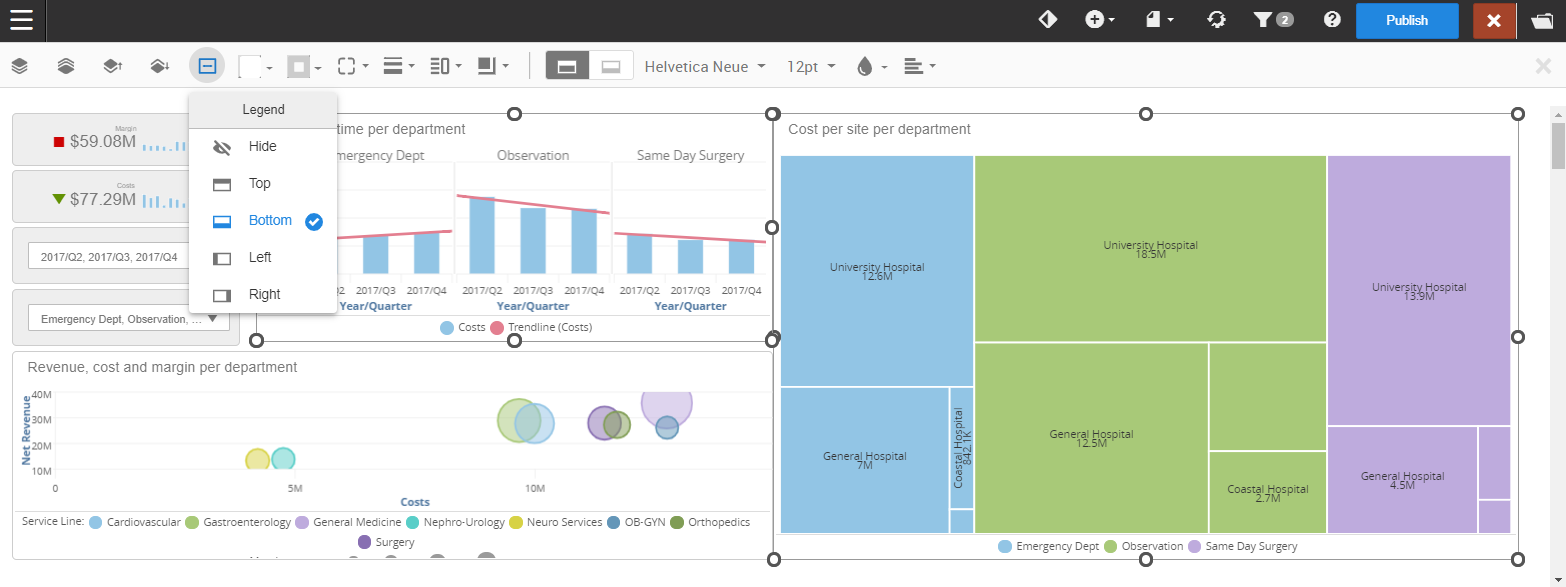

  3. Use Legend to change the placement of the dashlet's legend.

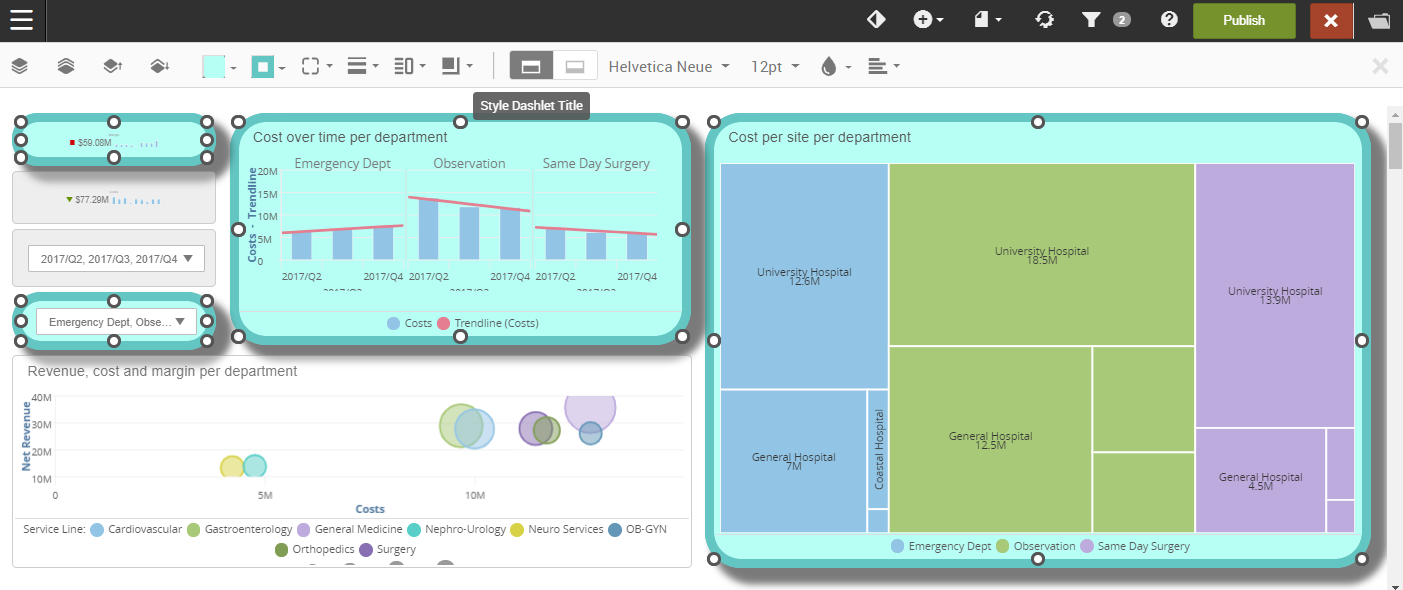

  4. To modify text in the dashlet, select either Style Dashlet Title or Style Dashlet Body. Style Dashlet Body only appears for embedded filters. It is disabled for all other dashlets. Users can set font size, color, style, and alignment.

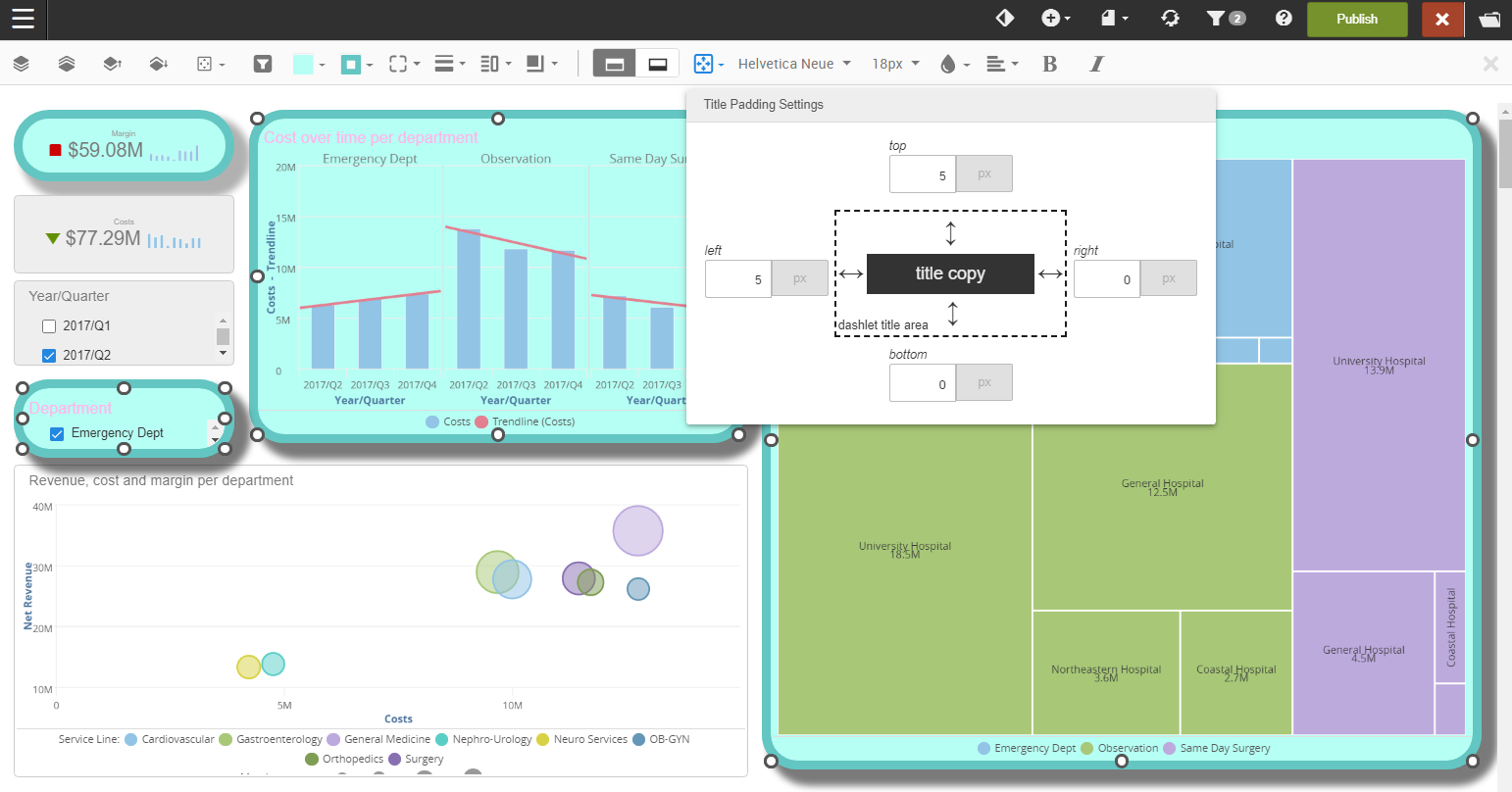

    • If the Style Dashlet Title is selected, use the Title Padding option to apply pixel padding for the dashlet's title.

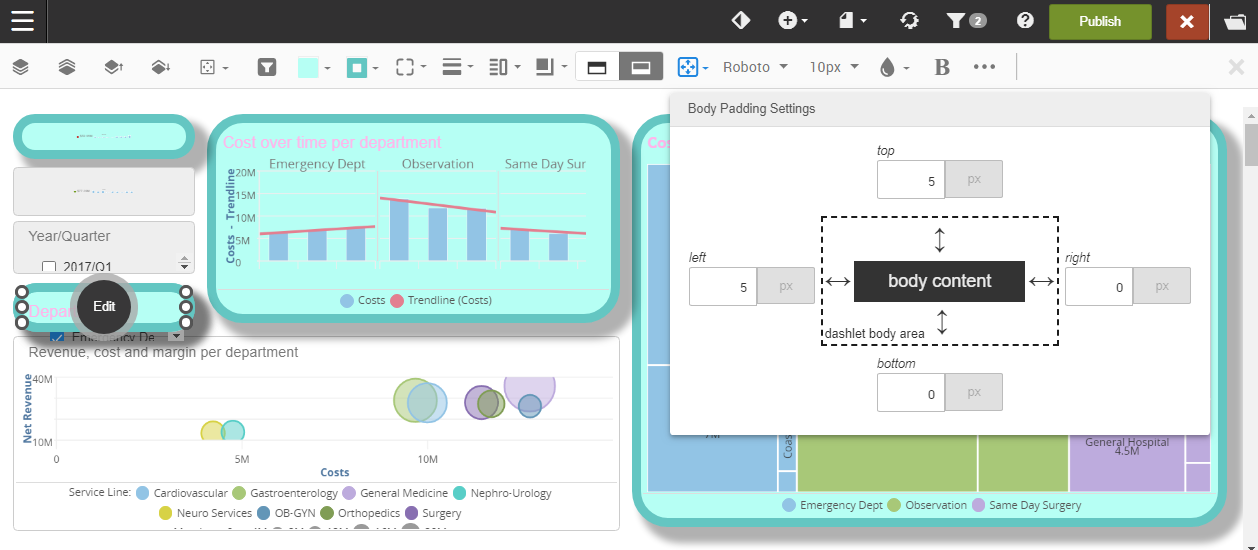

    • If the Style Dashlet Body is selected for an embedded filter, use the Body Padding option to apply pixel padding for the dashlet's body.

  5. Publish to save the changes to the dashlet.
